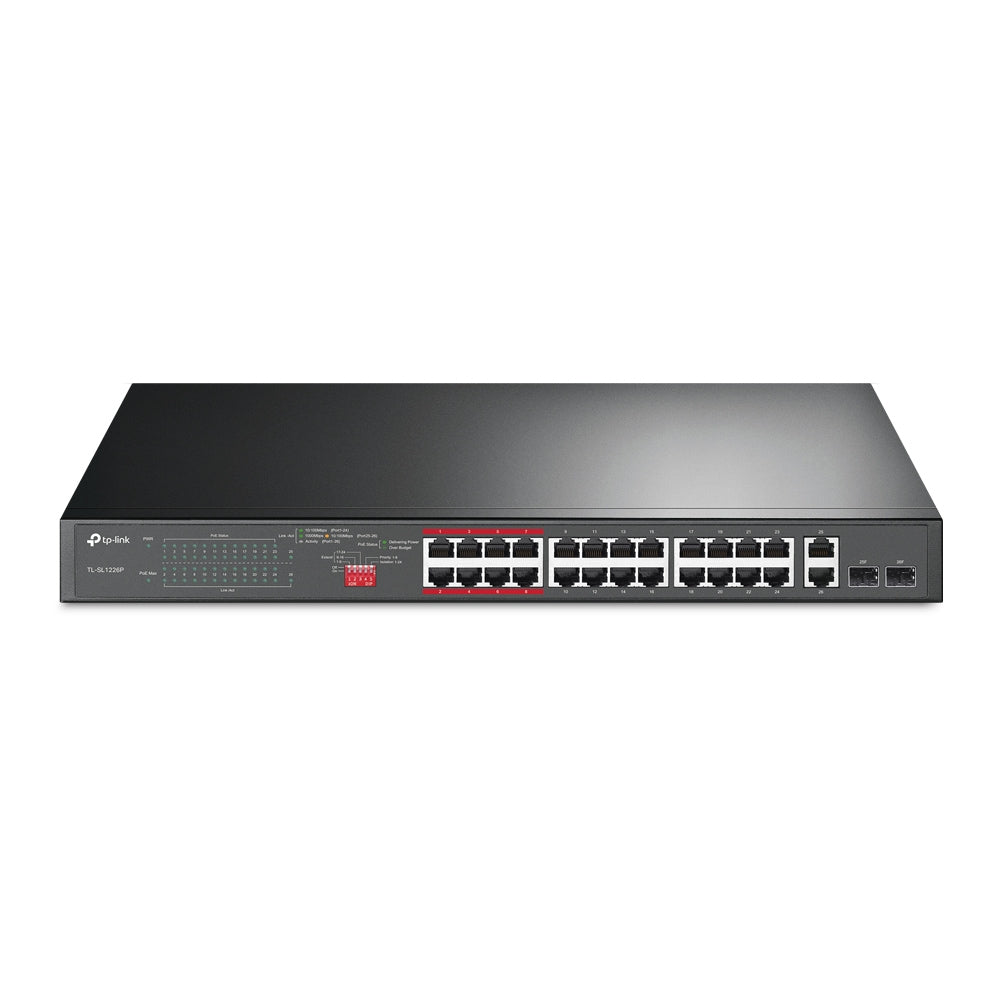

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch , Up To 250W For all PoE Ports, Up To 30W Each PoE Port

TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch Interface 24x PoE+ 10/100 Mbps RJ45 Ports 2x 10/100/1000 Mbps RJ45 Ports 2x Combo Gigabit SFP Slots Network Media EIA/TIA-568 100Ω STP (maximum 100m) Fan Quantity 2 Fans Physical Security Lock Yes Power Supply 100-240 VAC, 50/60 Hz Backup Bandwidth 8.8 Gbps PoE+ Ports(RJ45) Mac Address Table 8 K Dimensions ( W x D x H ) 17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm) Max Power Consumption 18.32 W (220/50 Hz. no PD connected) 294 W (220/50 Hz. with 250 W PD connected) Max Heat Dissipation 62.47 BTU/h (no PD connected) 1002.54 BTU/h (with 250 W PD connected) Advanced Features Compatible With IEEE 802.3at/af Compliant PDs Extend Mode (Up to 250m PoE power supply and data transmission) Priority Mode Isolation Mode PD Detection Intelligent Power Supply Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control

• 24x PoE+ 10/100 Mbps RJ45 ports, 2x Gigabit RJ45 ports, and 2x combo Gigabit SFP slots
• High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
• Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
• Priority Mode ensures high priority of ports 1-8 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Plug and play, with no configuration and installation needed

Brand	TP-LINK
Product Type	Ink cartridge
10Base-T	UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx	UTP category 5, 5e cable (maximum 100m)
1000Base-T	UTP category 5, 5e, 6 or above cable (maximum 100m)
Standard	802.3at/802.3af compliant
Poe Ports	Port 1 - Port 24
Poe Power Budget	250 W
SKU	TL-SL1226P
OEM Code	TL-SL1226P
Barcode	1.21E+12

Brand: TP-LINK

OEM SKU: TL-SL1226P
