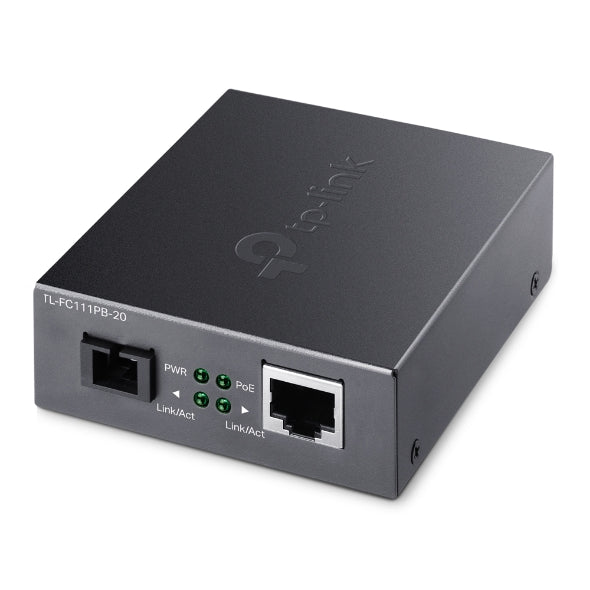

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE - IEEE 802.3u, 20KM, 1310 nm TX, 1550 nm RX

TP-Link TL-FC111PB-20 10/100Mbps WDM Media Converter with 1-Port PoE Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u Operating Temperature 0-50 °C (32-122 °F) Storage Temperature -40-70 °C (-40-158 °F) Operating Humidity 10-90% RH non-condensing Storage Humidity 5-90% RH non-condensing Power Supply 48 V/0.5 A LED PWR, Link/Act, PoE Dimensions ( W x D x H ) (94.5x73.0x27.0 mm) Wave Length 1310 nm TX, 1550 nm RX Connector Type • 1x 10/100 Mbps PoE RJ45 port Fiber Type 9/125 μm single-mode fber (<=20 km)

• Converts the data between fiber (optical signal) and copper (electric signal).
• Extends fiber distance up to 20 km.
• The 802.3af PoE output makes remote camera deployment easier and more convenient.
• WDM (Wave Division Multiplexing) technology enables to transmit and receive data over one single fiber strand instead of two.
• Wide operating temperature (0-50 °C) with reliability.
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode.
• 1x 100 Mbps SC fiber port

Brand	TP-LINK
Product Type	Ink cartridge
Network Media 100Base-Tx	2-pair UTP/STP of Cat. 5 or above (<=100 m)
SKU	FC111PB-20
OEM Code	FC111PB-20
Barcode	4.8971E+12

Brand: TP-LINK

OEM SKU: FC111PB-20
