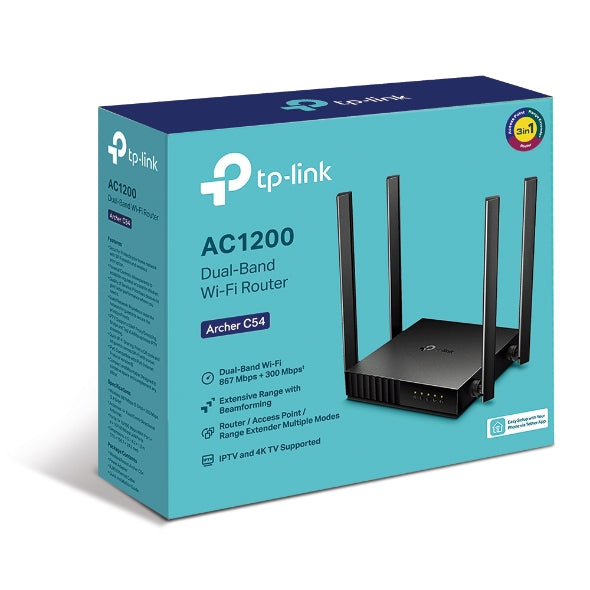

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router 2.4GHz 300Mbps 5GHz 867Mbps 4xLAN 1xWAN 4xAntennas, WPS, Router Access Point and Range Extender Modes

Standards Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz WiFi Speeds AC1200 WiFi Range 3 Bedroom Houses 4x Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range WiFi Capacity Medium Allocate devices to different bands for optimal performance Simultaneously communicates with multiple MU-MIMO clients Working Modes Router Mode Access Point Mode Processor Single-Core CPU Ethernet Ports 1x 10/100 Mbps WAN Port 4x 10/100 Mbps LAN Ports Buttons WPS Button Reset Button Power 5 V ⎓ 0.6 A Dimensions (WxDxH) (115 x 106.7 x 24.3 mm) WiFi Reception Sensitivity 5GHz:

• Faster AC Wi-Fi-AC1200 dual-band is ideal for 4K video streaming and high-speed downloading.
• Far-Reaching Coverage-4x antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
• Multi-Mode 3-in-1-Supports Router, Access Point, and Range Extender modes for added flexibility.
• Parental Controls-Manages when and how connected devices can access the internet.
• Guest Network-Provides separate access for guests in order to secure the host network.
• Smooth HD Streaming-Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
• IPv6 Supported-Compatible with the IPv6 (the latest Internet Protocol version 6).
• Compact and Mountable-Designed to conserve space and complement any décor.

Brand	TP-LINK
Product Type	Router
5 Ghz	867 Mbps (802.11ac)
2.4 Ghz	300 Mbps (802.11n)
11A 6Mbps	-93dBm；11a 54Mbps:-78dBm；
11Ac Ht20 Mcs8	69dBm;11ac HT40 mcs9:-65dBm;
11Ac Ht80 Mcs9	-62dBm;
11G 54Mbps	-78dBm;
11N Ht20 Mcs7	-74dBm;
11N Ht40 Mcs7	-71dbm；
SKU	Archer C54
OEM Code	Archer C54
Barcode	6.93536E+12

Brand: TP-LINK

OEM SKU: Archer C54
