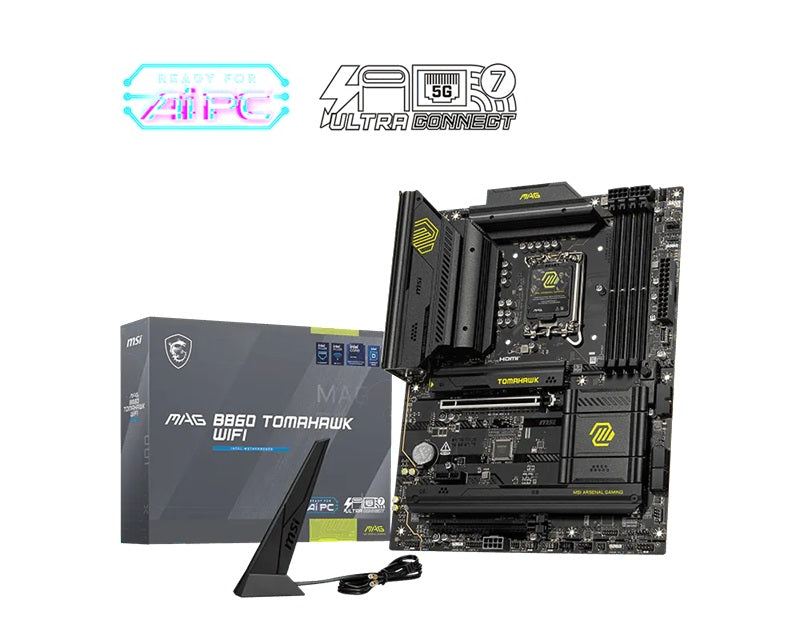

MSI MAG B860 TOMAHAWK WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 1x PCI-E x1, 3x M.2, 4x SATA 6G, 8x USB 2.0. Intel Killer BE1750

MSI MAG B860 TOMAHAWK WIFI, INTEL B860, 4x DDR5 256GB, 1x HDMI, 2x PCI-E x16 slot, 1x PCI-E x1, 3x M.2, 4x SATA 6G, 8x USB 2.0. Intel Killer BE1750

Chipset
INTEL B860

CPU
Supports Intel Core Ultra Processors (Series 2)
LGA 1851

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

Slot
2x PCI-E x16 slot
1x PCI-E x1 slot

Audio
Realtek ALC897
7.1-Channel High Definition Audio

Storage
3x M.2
4x SATA 6G

USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
4x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 40Gbps Type C (Rear)

WIRELESS LAN & BLUETOOTH
Intel Killer BE1750x Wi-Fi 7

LED FEATURE
4x EZ Debug LED

OPERATING SYSTEM
Support for Windows 11 64-bit

PCB Info ATX
243.84mmx304.8mm

Brand: MSI

OEM SKU: MAG B860 TOMAHAWK WIFI
