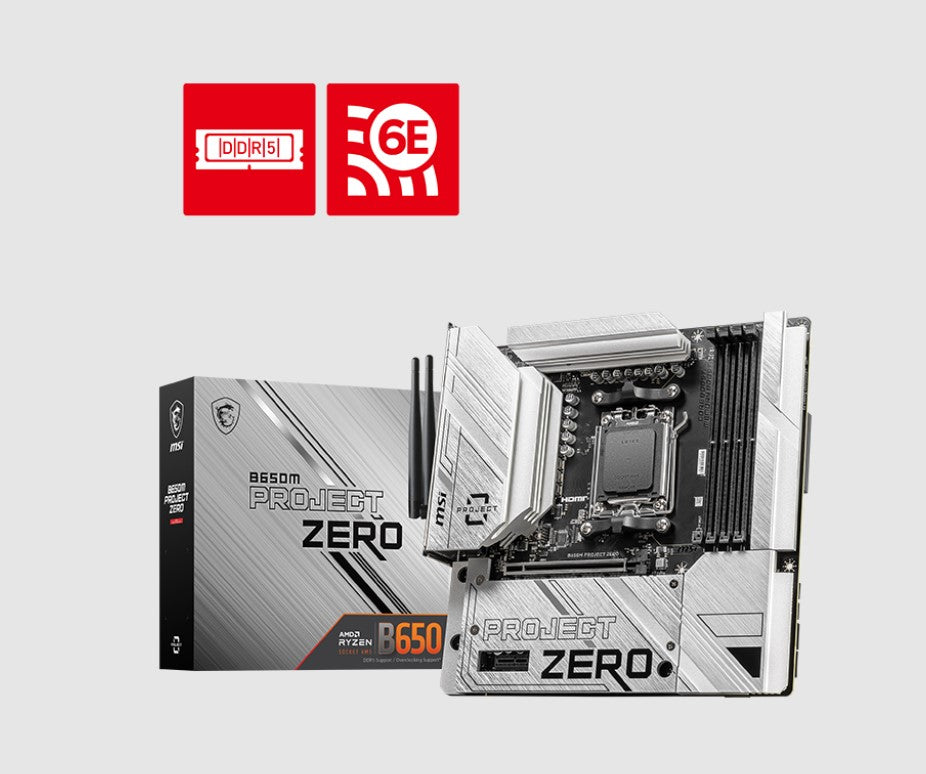

MSI B650M PROJECT ZERO Motherboard, AMD B650, 4x DDR5 128GB, 1x HDMI, 2x M.2, USB 3.2 Type A x9
MSI B650M PROJECT ZERO Motherboard, AMD B650, 4x DDR5 128GB, 1x HDMI, 2x M.2, USB 3.2 Type A x9
SKU:B650M PROJECT ZERO
Couldn't load pickup availability
Share
Collapsible content
From the Manufacturer
Description
MSI B650M PROJECT ZERO Motherboard, AMD B650, 4x DDR5 128GB, 1x HDMI, 2x M.2, USB 3.2 Type A x9
CHIPSET AMD B650
CPU SUPPORT Supports AMD Ryzen 7000 Series Desktop Processors
Socket AM5
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz
ONBOARD GRAPHICS 1x HDMI
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
PCB DIMENSION mATX
243.84mmx243.84mm
Specifications
| Brand | MSI |
|---|---|
| SKU | B650M PROJECT ZERO |
| Barcode | 4711377126649 |
| OEM SKU | B650M PROJECT ZERO |
