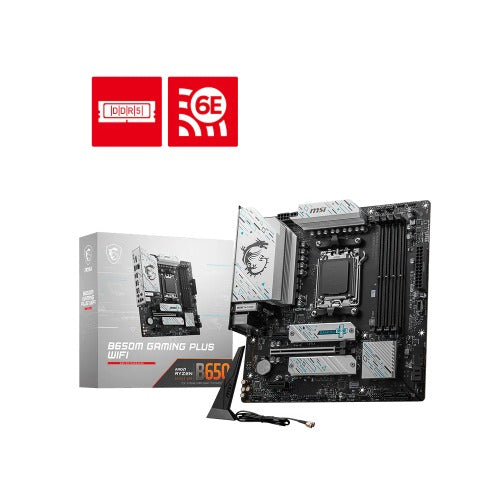

MSI B650M GAMING PLUS WIF AMD AM5 mATX Motherboard, 4x DDR5, 1x PCI-E x16, 2x PCI-E x1, 2x M.2, 4x SATA, 2x USB 3.2, 4x USB 2.0, 1xUSB Type C, B650M GAMING PLUS WIFI

MSI B650M GAMING PLUS WIF AMD AM5 mATX Motherboard, 4x DDR5, 1x PCI-E x16, 2x PCI-E x1, 2x M.2, 4x SATA, 2x USB 3.2, 4x USB 2.0, 1xUSB Type C

CHIPSET AMD B650

CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5

MEMORY 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS
1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*

SLOT
1x PCI-E x16 slot
• Supports x16 (For Ryzen 7000 Series processors)
• Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
• Supports x4 (For Ryzen 5 8500G processor)
2x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

STORAGE
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed

RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 for M.2 NVMe storage devices

USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)

LAN Realtek RTL8125BG 2.5Gbps LAN

WIRELESS LAN & BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3**
