Description

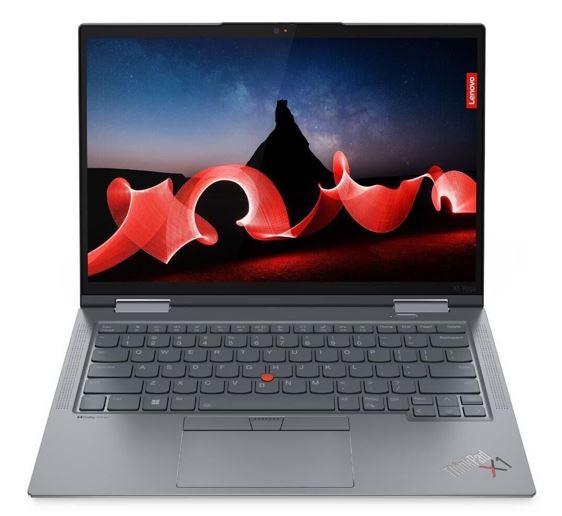

LENOVO ThinkPad X1 Yoga 14' WUXGA TOUCH IR Intel i7-1355U 16GB DDR5 1TB SSD WIN 11 PRO Intel Iris Xe GPU Fingerprint Thunderbolt 3yr PREM 1.3kg CTO
Processor Intel Core i7-1355U, 10C (2P + 8E) / 12T, P-core 1.7 / 5.0GHz, E-core 1.2 / 3.7GHz, 12MB
Graphics Integrated Intel Iris Xe Graphics
Chipset Intel SoC Platform
Memory 16GB Soldered LPDDR5-6400
Memory Slots Memory soldered to systemboard, no slots, 8-channel
Max Memory 16GB soldered memory, not upgradable
Storage 1TB M.2 2280 SSD PCIe NVMe, PCIe 4.0 x4
Storage Support One drive, up to 2TB M.2 2280 SSD
Storage Slot One M.2 2280 PCIe 4.0 x4 slot
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek ALC3306 codec
Speakers Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos
Camera FHD 1080p + IR Hybrid with Privacy Shutter
Microphone 4x, Array
Battery Integrated 57Wh
Power Adapter 65W USB-C (3-pin)
DESIGN
Display Lenovo LCD Module,14',WUXGA,Touch,Anti-Glare,IPS,400nit,100% SRGB
Touchscreen OGS (One Glass Solution) multi-touch, supports 10-point touch
Keyboard Backlit, English
Case Color Storm Grey
Case Material Aluminium (Top), Aluminium (Bottom)
Pen Lenovo Integrated Pen
Dimensions (WxDxH) 314.4 x 222.3 x 15.53 mm (12.38 x 8.75 x 0.61 inches)
Weight Starting at 1.38 kg (3.04 lbs)
SOFTWARE
Operating System Windows 11 Pro
Bundled Software Intel Connectivity Performance Suite
CONNECTIVITY
Ethernet No Onboard Ethernet
WLAN + Bluetooth Intel Wi-Fi 6E AX211, 802.11ax 2x2 + BT5.3
WWAN None
SIM Card None
NFC None
Standard Ports 1x USB 3.2 Gen 1
1x USB 3.2 Gen 1 (Always On)
2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
1x HDMI 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured) None
SECURITY & PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington Nano Security Slot, 2.5 x 6 mm
Other Security Camera privacy shutter
IR camera for Windows Hello (facial recognition)
Glance by Mirametrix
SERVICE
Warranty 3-year Premium
CERTIFICATIONS
Green Certifications ENERGY STAR 8.0
EPEAT Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 9.0
Other Certifications Intel Evo Platform
Eyesafe Certified 2.0
Mil-Spec Test MIL-STD-810H military test passed
Specifications
Brand: Lenovo
OEM SKU: 21HRS9DS00-1T
