Description

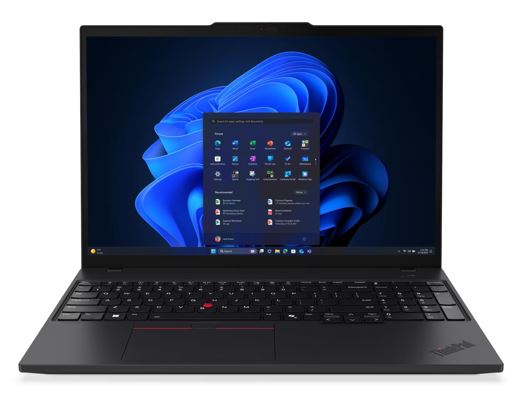

LENOVO ThinkPad T16 G4 16' WUXGA Intel U5-225H 16GB DDR5 512GB SSD WIN 11 PRO Intel Arc 130T GPU AI PC NPU 12 TOPS Thunderbolt 3yr PREM 1.7kg
PERFORMANCE
Processor Intel Core Ultra 5 225H, 14C (4P + 8E + 2LPE) / 14T, Max Turbo up to 4.9GHz, 18MB Intel Smart Cache
AI PC Category AI PC
NPU Integrated Intel AI Boost, up to 13 TOPS
Graphics Integrated Intel Arc 130T GPU
Chipset Intel SoC Platform
Memory 2x 8GB SODIMM DDR5-5600
Memory Slots Arrow Lake: two DDR5 SODIMM / CSODIMM slots, dual-channel capable
Max Memory Arrow Lake: up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
Storage Slot Models with V or H series processor: one M.2 2280 PCIe 5.0 x4 slot
Max Storage Support One drive, up to 2TB M.2 2280 SSD
Optical None
Card Reader No Card Reader
Audio Chip High Definition (HD) Audio, Realtek ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio
Microphone 2x, 360°
Camera 5.0MP + IR Discrete with Privacy Shutter
Battery 52.5Wh
Power Adapter 65W USB-C (3-pin)
DESIGN
Display 16' WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC
Touchscreen None
Screen-to-Body Ratio 87.22%
Pen Pen Not Supported
Keyboard Backlit, English
Dimensions (WxDxH) 359.7 x 250.8 x 11.8/18.14 (front/rear), 23.5 (maximum) mm; 14.16 x 9.87 x 0.46/0.71 (front/rear), 0.93 (maximum) inches
Weight Starting at 1.76 kg (3.89 lbs)
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
SOFTWARE
Operating System Windows 11 Pro, English (US) / English (UK)
Bundled Software None
CONNECTIVITY
WLAN + Bluetooth Intel Wi-Fi 7 BE201, 802.11be 2x2 + BT5.4
WWAN WWAN Not Supported
SIM Card No physical SIM card inbox
Ethernet 100/1000M (RJ-45)
NFC No NFC
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C (Thunderbolt 4 / USB4 40Gbps), with USB PD 3.0 and DisplayPort 2.1
1x HDMI 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad T16 Gen 4 (Intel)
SECURITY & PRIVACY
ThinkShield ThinkShield is a comprehensive security solution that encompasses hardware, software, and supply chain components. For more detials, visit here
Security Chip Discrete TPM 2.0 Enabled
Physical Locks Kensington Nano Security Slot, 2.5 x 6 mm
Smart Card Reader No Smart Card Reader
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Other Security Camera privacy shutter (camera models)
Ultrasonic Human Presence Detection
IR camera for Windows Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro
Included Upgrade 3Y Premier Support
Specifications
Brand: Lenovo
OEM SKU: 21QE0020AU
