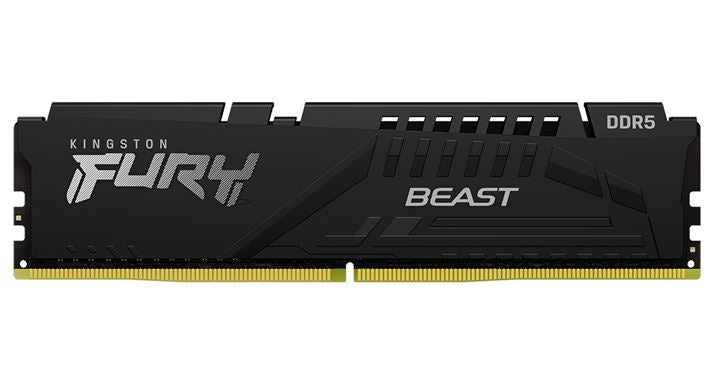

Kingston 32GB (1x32GB) DDR5 UDIMM 5600MT/s CL36 FURY Beast Black EXPO Memory Desktop, KF556C36BBE-32

Kingston 32GB (1x32GB) DDR5 5600MT/s CL36 FURY Beast Black EXPO Memory Kingston FURY KF556C36BBE-32 is a 4G x 64-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. The module supports AMD EXPO v1.0 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. CL(IDD) 40 cycles Row Cycle Time (tRCmin) 48ns(min.) Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.) Row Active Time (tRASmin) 32ns(min.) UL Rating 94 V - 0 Operating Temperature 0 to +85C Storage Temperature -55 C to +100 C

• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37' (34.9mm), w/heatsink

Brand	Kingston
Product Type	Memory
• Power Supply	VDD = 1.1V Typical
SKU	KF556C36BBE-32
OEM Code	KF556C36BBE-32
Barcode	740617331752

Brand: Kingston

OEM SKU: KF556C36BBE-32
