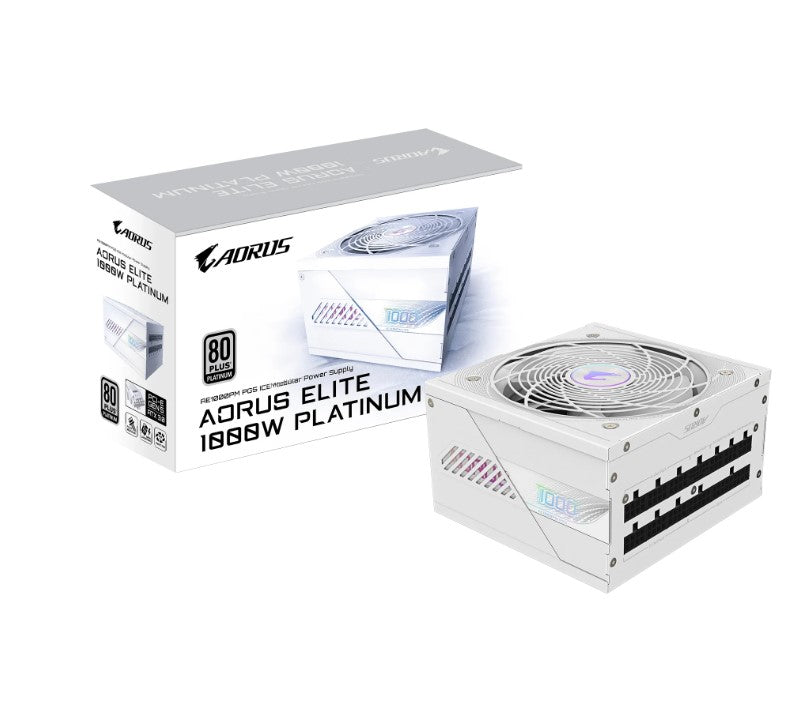

Gigabyte GP-AE1000PM PG5 ICE 1000W PSU Power Supply, ATX 60-50 Hz 1000W 120mm Fan 80 PLUS Platinum >100,000 hours

Model GP-AE1000PM PG5 ICE Type Intel Form Factor ATX 12V v3.0 PFC Active PFC (>0.9 typical) Input Voltage 100-240 Vac (full range) Input Current 15-6.5A Input Frequency 60-50 Hz Output Capacity 1000W Dimension 150 x 140 x 86mm Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan Efficiency 92% at typical load MTBF >100,000 hours Protection OVP/OPP/SCP/UVP/OCP/OTP Power Good Signal 100-150ms Hold Up Time >16ms Cable Type Flat, All white Connectors

• The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
• Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
• All trademarks and logos are the properties of their respective holders.
• Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Brand	Gigabyte
Product Type	Power supply
Atx/Mb 20+4 Pin X 1	650mm*1
Cpu/Eps 4+4 Pin X 2	700mm*2
Pci-E 16 Pin X 1	700mm*1
Pci-E 6+2 Pin X 6	650mm+150mm*2, 750mm*2
Sata X 8	600mm+150mm+150mm+150mm*2
4 Pin Peripheral X 4	500mm+150mm+150mm+150mm*1
SKU	GP-AE1000PM PG5 ICE
OEM Code	GP-AE1000PM PG5 ICE
Barcode	4.71933E+12

Brand: Gigabyte

OEM SKU: GP-AE1000PM PG5 ICE
