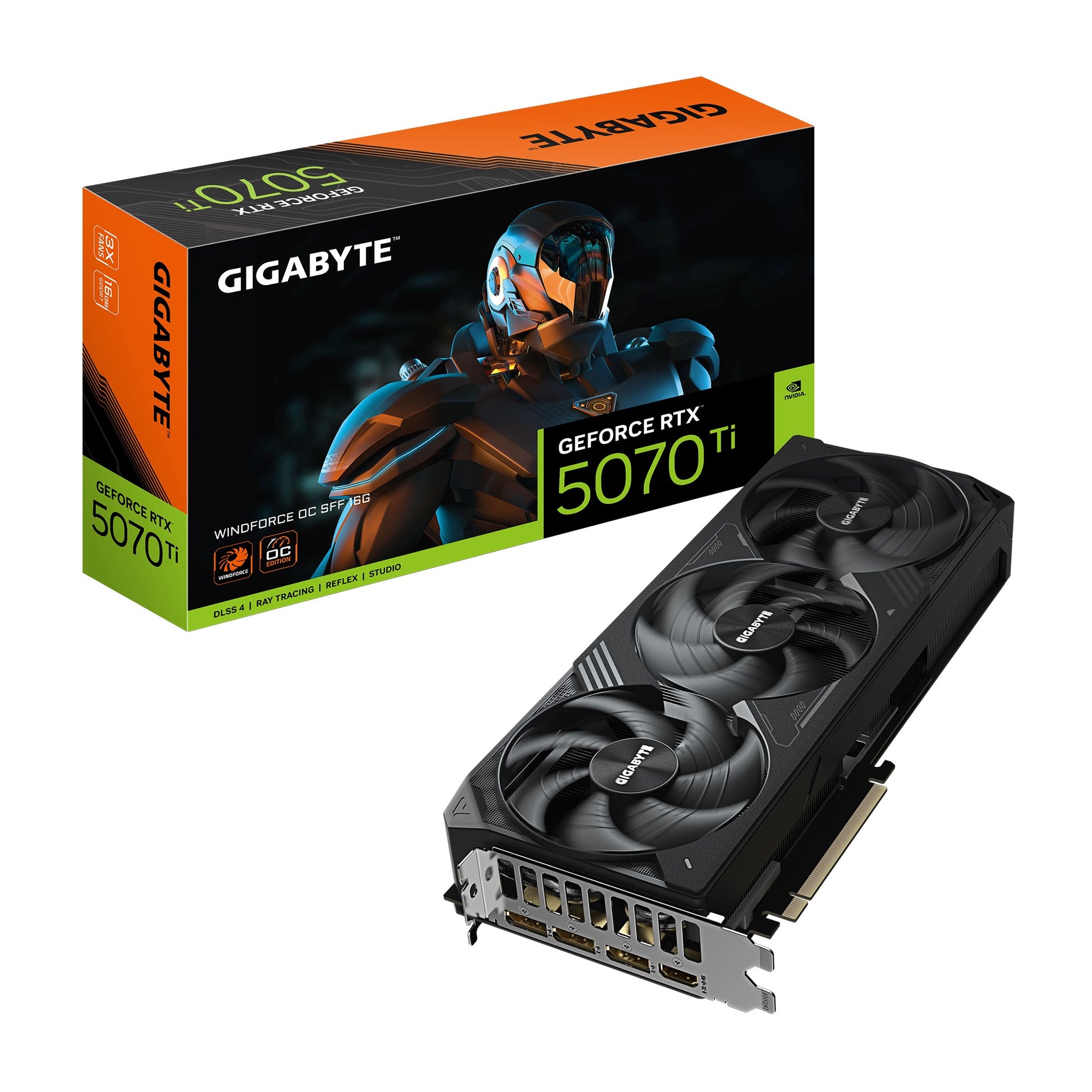

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G, 2497 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W,DisplayPort 2.1b HDMI 2.1b x1, GV-N507TWF3OC-16GD
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G, 2497 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W,DisplayPort 2.1b HDMI 2.1b x1, GV-N507TWF3OC-16GD
SKU:GV-N507TWF3OC-16GD
Couldn't load pickup availability
Share
Collapsible content
From the Manufacturer
Description
The Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G is a compact graphics card built on the NVIDIA Blackwell architecture, pairing 8960 CUDA cores with 16GB of GDDR7 memory. It meets NVIDIA's small form factor specification and fits into a 304mm card for smaller cases. The boosted core clock runs at 2497 MHz over PCI Express 5.0.
The WINDFORCE cooling system uses Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, and a 3D active fan that stays off under low load for quieter idle operation. A dual BIOS switch selects Performance or Silent mode. Fourth-generation ray tracing cores and fifth-generation Tensor cores support DLSS 4, and three DisplayPort 2.1b outputs plus one HDMI 2.1b output drive multiple high-resolution displays.
Suited to compact and small form factor desktops with a 750W or larger power supply. Browse the full graphics cards range or more Gigabyte products at Everyday Home Living.
| Specification | Detail |
|---|---|
| GPU | NVIDIA GeForce RTX 5070 Ti |
| Architecture | NVIDIA Blackwell |
| Boost clock | 2497 MHz |
| CUDA cores | 8960 |
| Memory | 16GB GDDR7, 256-bit |
| Memory speed | 28 Gbps |
| Interface | PCI Express 5.0 |
| Outputs | DisplayPort 2.1b x3, HDMI 2.1b x1 |
| Form factor | NVIDIA SFF-ready |
| Recommended PSU | 750W |
| Card dimensions | 304 x 126 x 50 mm |
| Model | GV-N507TWF3OC-16GD |
Specifications
| Brand | Gigabyte |
|---|---|
| SKU | GV-N507TWF3OC-16GD |
| OEM SKU | GV-N507TWF3OC-16GD |
