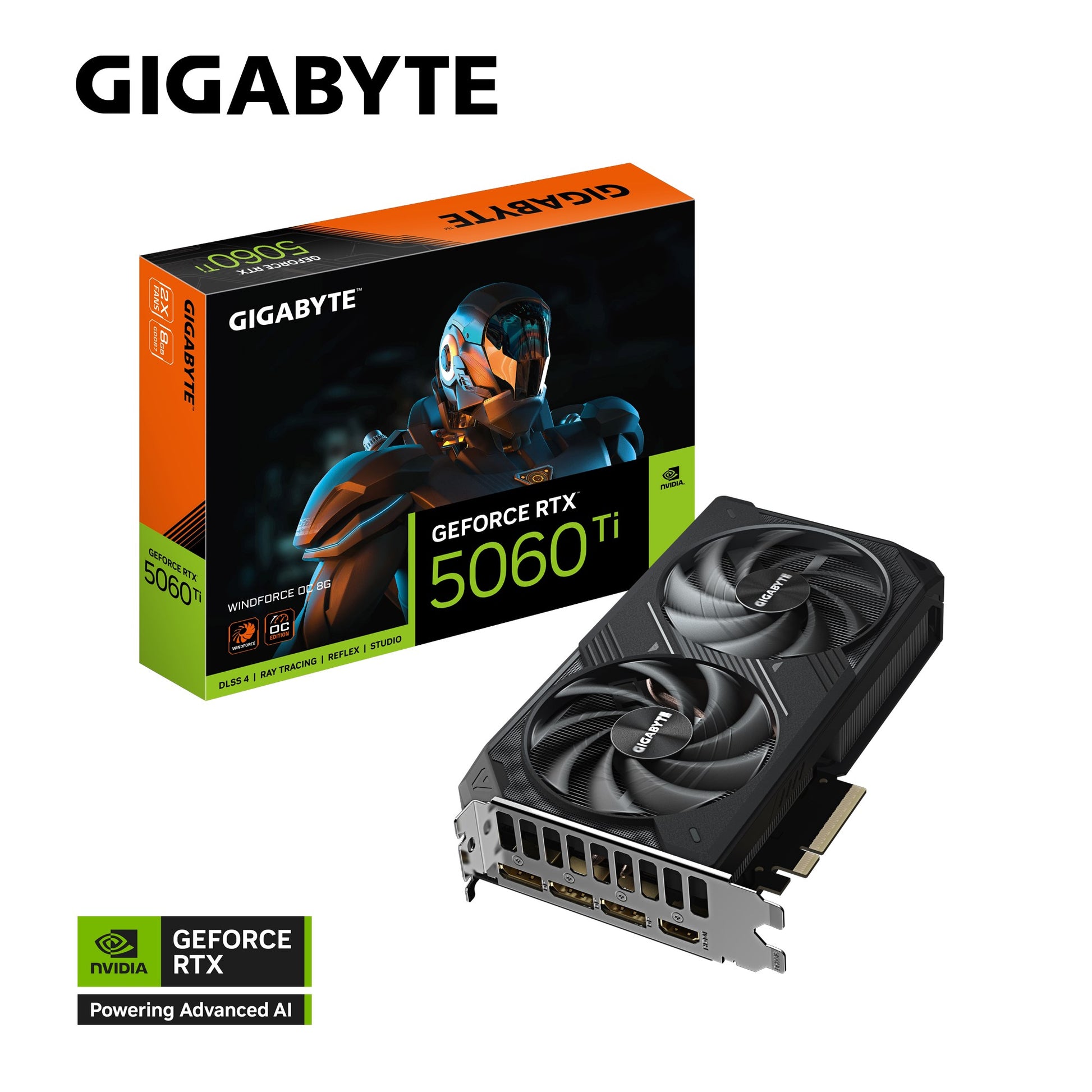

Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1, GV-N506TWF2OC-8GD 1.0

Gigabyte GeForce RTX 5060 Ti WINDFORCE OC 8G, 2587 MHz, CUDA 4608, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

PCB Form ATX

Accessories Quick guide

The Ultimate Platform for Gamers and Creators

New Streaming Multiprocessors Optimized for neural shaders

Fourth-Gen Ray Tracing Cores Built for Mega Geometry

3D ACTIVE FAN The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

Graphics	Processing
Core Clock	2587 MHz (Reference card :2572 MHz)
CUDA Cores	4608
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=208 W=120 H=40 mm
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	650W
Power Connectors	8 Pin*1
Display	Port 2.1b *3
HDMI	2.1b *1
FEATURES	Powered by the NVIDIA Blackwell architecture and DLSS 4; Powered by GeForce RTX 5060 Ti; Integrated with 8GB GDDR7 128bit memory interface
Fifth-Gen Tensor Cores	Max AI performance with FP4 and DLSS 4
COOLING SYSTEM	The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
HAWK FAN	The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT	Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
ALTERNATE SPINNING	Reduce the turbulence of adjacent fans and increase airflow pressure.
SERVER-GRADE THERMAL CONDUCTIVE GEL	To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE and COMPOSITE COPPER HEAT PIPE	The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING	Extended heatsink allows air to pass through, providing better heat dissipation.
REINFORCED STRUCTURE	The reinforced backplate securely fastened to the I/O bracket, provides exceptional structural integrity.

Brand: Gigabyte

OEM SKU: GV-N506TWF2OC-8GD 1.0
