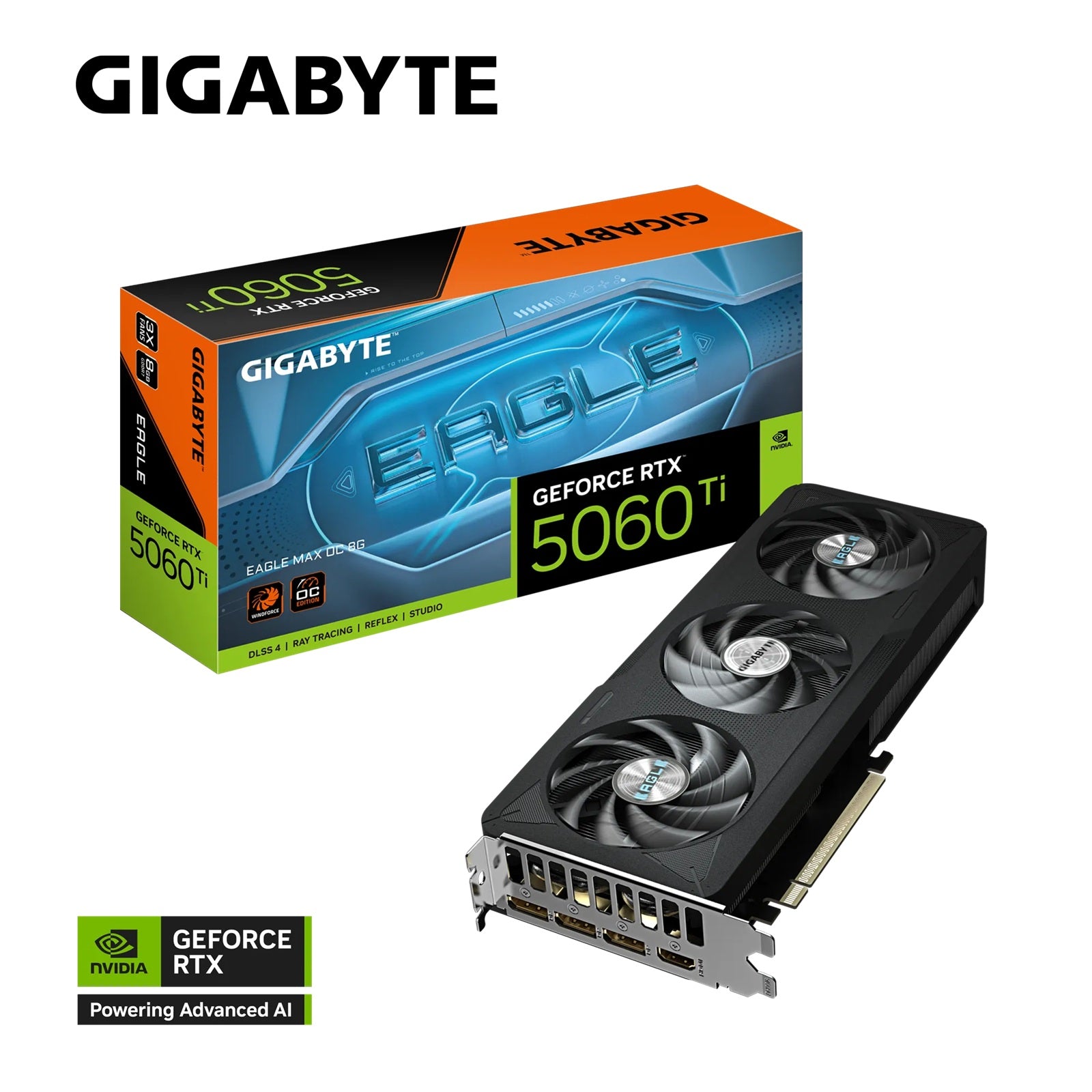

The Gigabyte GeForce RTX 5060 Ti Eagle Max OC 8G is a graphics card for 1080p and 1440p gaming, powered by the NVIDIA Blackwell architecture with DLSS 4 support. It pairs 8GB of GDDR7 memory with a factory overclock for higher, steadier frame rates.
The Windforce cooling system, with Hawk fans, server-grade thermal conductive gel and a reinforced structure, keeps the card cool and quiet under sustained load. A PCI Express 5.0 interface connects the card to current motherboards, with a boost clock of 2617 MHz.
Three DisplayPort 2.1b outputs and one HDMI 2.1b output drive up to four displays at resolutions as high as 7680 x 4320. The card is suited to a mainstream gaming build with a 650W or larger power supply and a spare 8-pin power connector.
Browse more graphics cards or the full Gigabyte range at Everyday Home Living.
| Specification |
Detail |
| GPU |
NVIDIA GeForce RTX 5060 Ti |
| Memory |
8GB GDDR7, 28 Gbps |
| Boost clock |
2617 MHz |
| CUDA cores |
4608 |
| Interface |
PCI Express 5.0 |
| Outputs |
3 x DisplayPort 2.1b, 1 x HDMI 2.1b |
| Power connectors |
8-pin x 1 |
| Recommended PSU |
650 W |
| Dimensions |
281 x 115 x 40 mm |
| Model |
GV-N506TEAGLEMAX OC-8GD |
