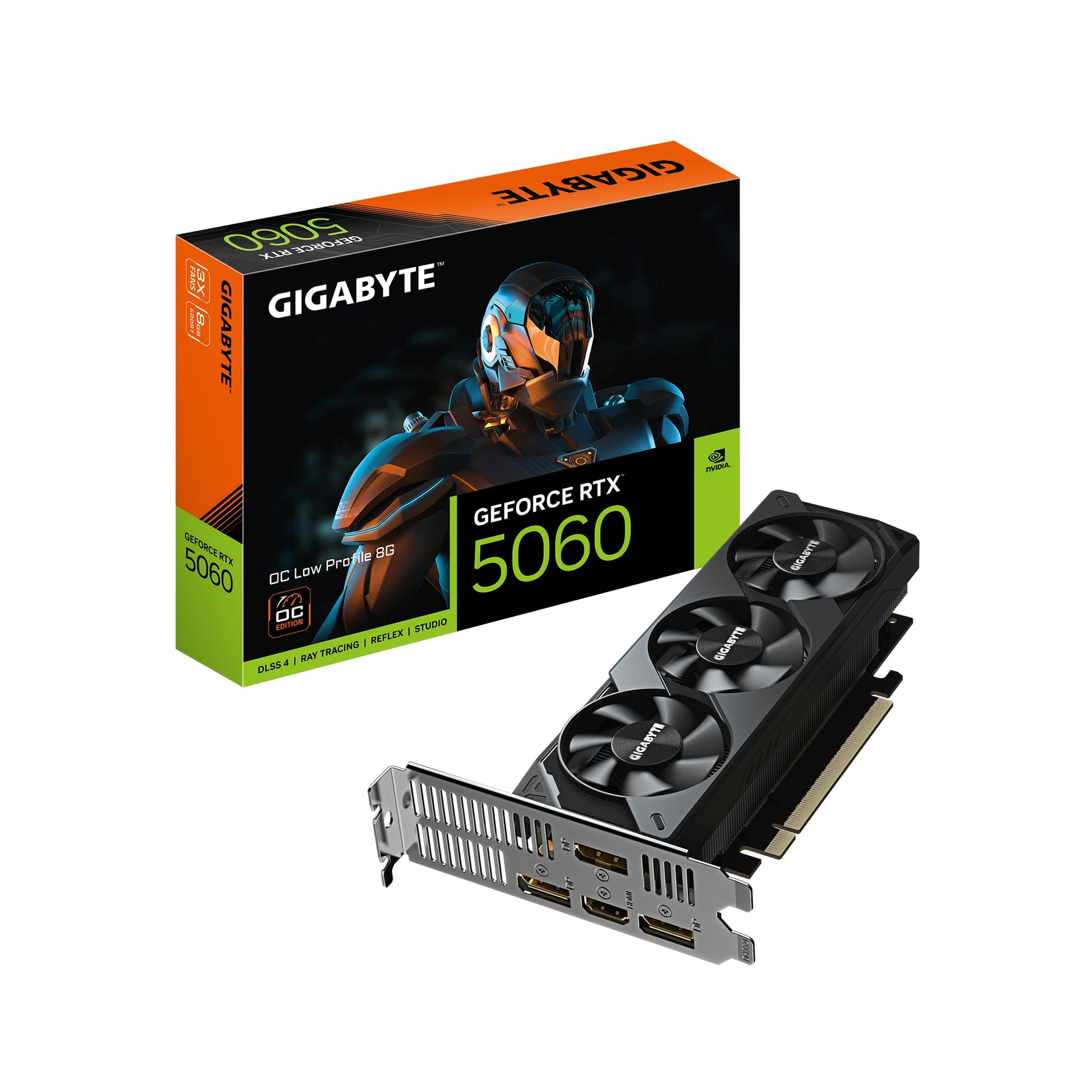

Gigabyte GeForce RTX 5060 OC Low Profile 8G, 2512 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 1.4a *1 HDMI 2.1b x1, GV-N5060OC-8GL

Gigabyte GeForce RTX 5060 OC Low Profile 8G, 2512 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 1.4a *1 HDMI 2.1b x1

PCB Form ATX

NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators

New Streaming Multiprocessors Optimized for neural shaders

Fourth-Gen Ray Tracing Cores Built for Mega Geometry

EXCELLENCE IN ESSENTIAL

Graphics	Processing
Core Clock	2512 MHz (Reference card : 2497MHz)
CUDA Cores	3840
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=182 W=69 H=36
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	450W
Power Connectors	8 Pin*1
Display	Port 1.4a *1
HDMI	2.1b *1
Accessories	1. Quick guide; 2. Low Profile Bracket
FEATURES	Powered by the NVIDIA Blackwell architecture and DLSS 4; Powered by GeForce RTX 5060; Integrated with 8GB GDDR7 128 bit memory interface; Low Profile Design with 182mm card length
GRAPHENE NANO LUBRICANT	Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Fifth-Gen Tensor Cores	Max AI performance with FP4 and DLSS 4
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM	GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.
SERVER-GRADE THERMAL CONDUCTIVE GEL	To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE and COMPOSITE COPPER HEAT PIPE	The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
LOW PROFILE DESIGN	At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.
AMPLE CONNECTIVITY	Enjoy versatile display options with three DisplayPorts and one HDMI port, supporting up to four displays simultaneously. Meets the demands of multi-display setups, high-resolution applications, and delivers an ultimate gaming performance experience.

Brand: Gigabyte

OEM SKU: GV-N5060OC-8GL
