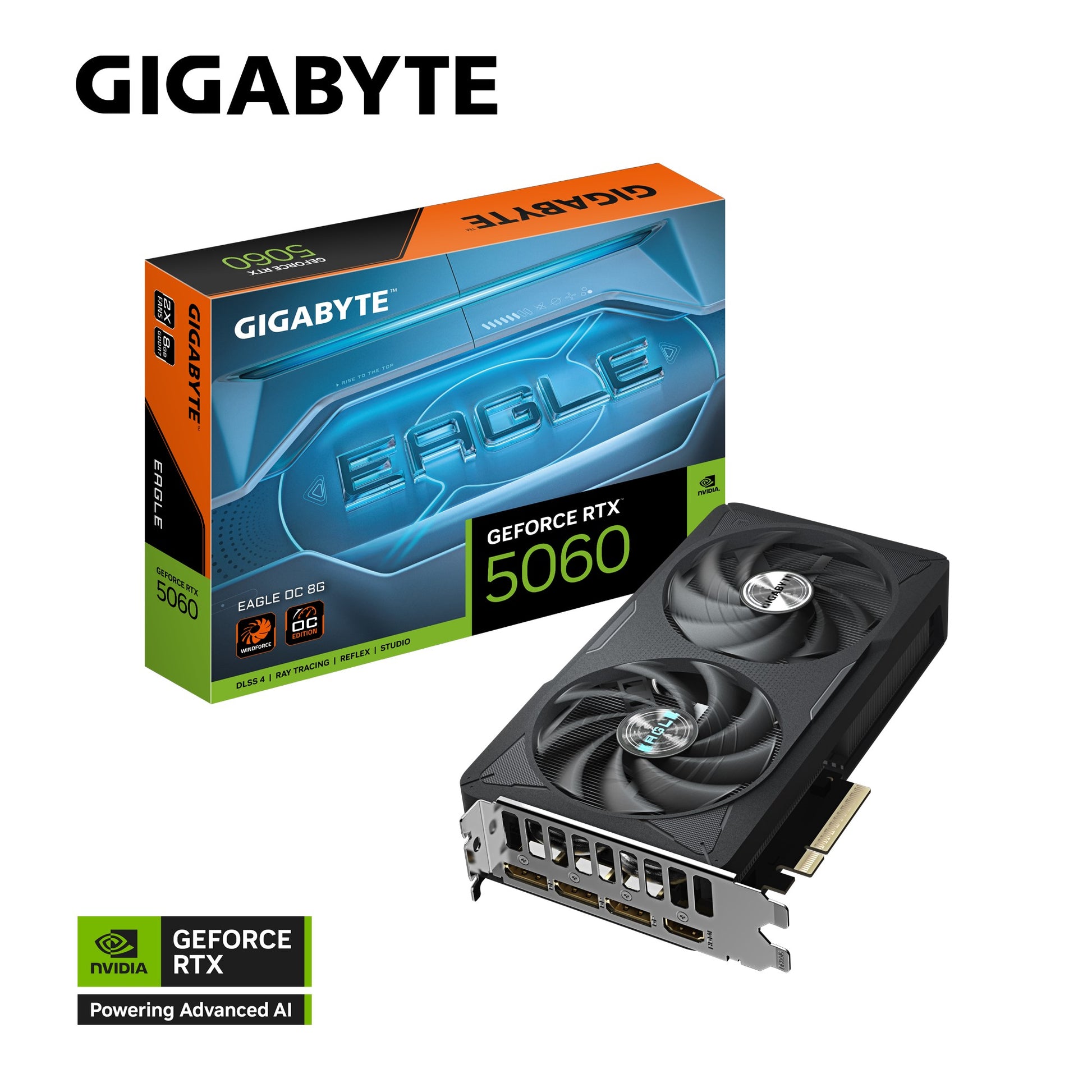

Gigabyte GeForce RTX 5060 EAGLE OC 8G, 2550 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b *3 HDMI 2.1b x1, GV-N5060EAGLE OC-8GD

Gigabyte GeForce RTX 5060 EAGLE OC 8G, 2550 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 2.1b *3 HDMI 2.1b x1

PCB Form ATX

Accessories Quick guide

NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators

New Streaming Multiprocessors Optimized for neural shaders

Fourth-Gen Ray Tracing Cores Built for Mega Geometry

EXCELLENCE IN ESSENTIAL

Graphics	Processing
Core Clock	2550 MHz (Reference card : 2497MHz)
CUDA Cores	3840
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=208 W=120 H=40
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	450W
Power Connectors	8 Pin*1
Display	Port 2.1b *3
HDMI	2.1b *1
FEATURES	Powered by the NVIDIA Blackwell architecture and DLSS 4; Powered by GeForce RTX 5060; Integrated with 8GB GDDR7 128bit memory interface
Fifth-Gen Tensor Cores	Max AI performance with FP4 and DLSS 4
WINDFORCE COOLING SYSTEM	The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN	The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
SIGNATURE IDENTITY	The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.
DYNAMIC PULSATING VISUAL	The addition of pulsating elements on the front enhances the overall look with a more depth and dynamics feel, creating a strong sci-fi vibe.
REINFORCED STRUCTURE	The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Brand: Gigabyte

OEM SKU: GV-N5060EAGLE OC-8GD
