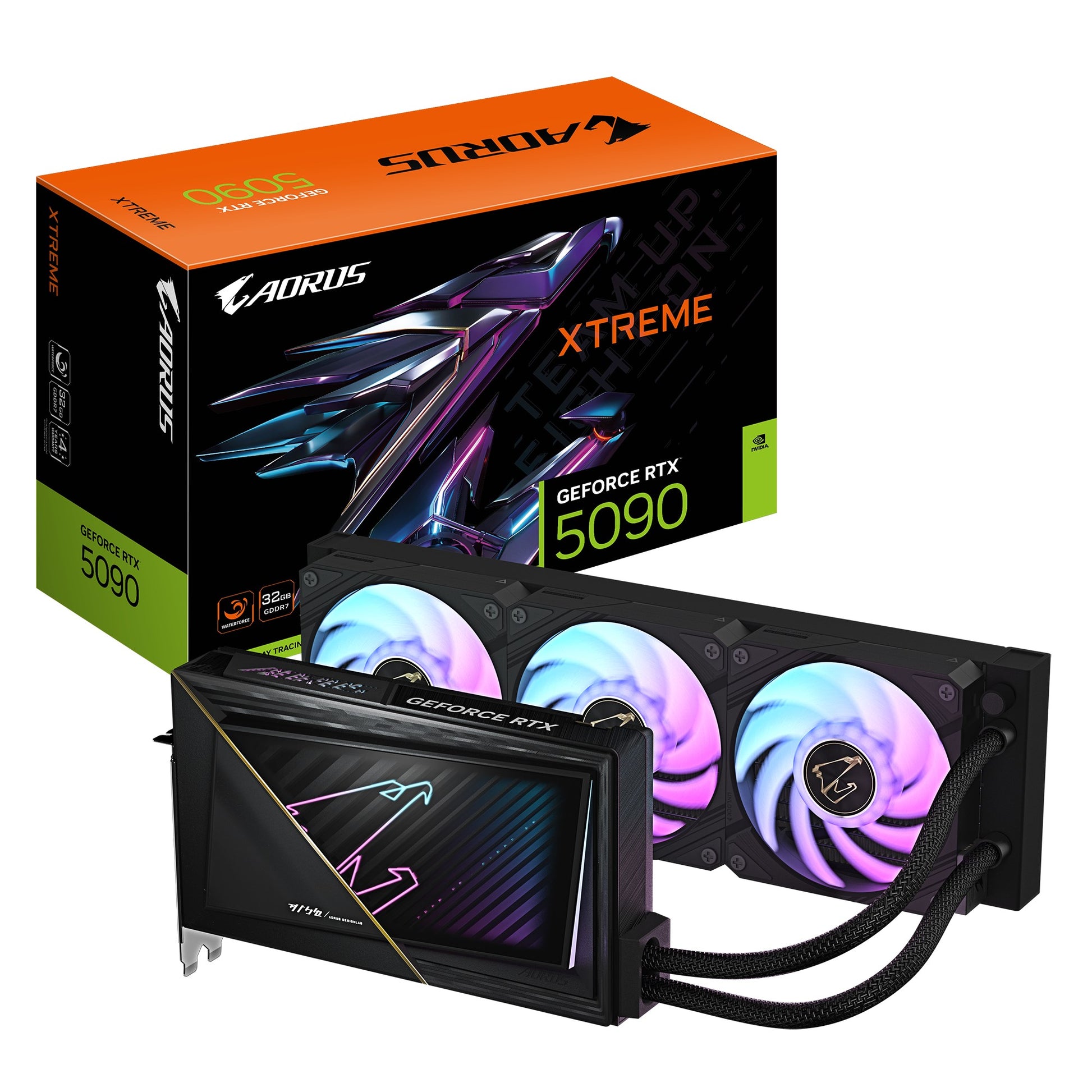

Gigabyte AORUS GeForce RTX™ 5090 XTREME WATERFORCE 32G, 2655 MHz , CUDA 21760, 28 Gbps, GDDR7, 512 bit, PSU 1000W, DisplayPort 2.1b *3 HDMI 2.1b *1

Gigabyte AORUS GeForce RTX™ 5090 XTREME WATERFORCE 32G, 2655 MHz , CUDA 21760, 28 Gbps, GDDR7, 512 bit, PSU 1000W, DisplayPort 2.1b *3 HDMI 2.1b *1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5090

Core Clock
2655 MHz (Reference card : 2407MHz)

CUDA® Cores
21760

Memory Clock
28 Gbps

Memory Size
32 GB

Memory Type
GDDR7

Memory Bus
512 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680 x 4320

Multi-view
4

Card size
L=245 W=146 H=36 mm

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
1000W

Power Connectors
16 pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Tube length
460mm ± 1.5%

Radiator
360mm aluminum radiator

Fan
3 x 120mm ARGB fans

Accessories
1. Quick guide
2. Warranty registration
3. 1x 12V-2x6 to 4x PCIe 8pin adapter
4. AORUS identity sticker
5. AORUS metal sticker

FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5090
Integrated with 32GB GDDR7 512bit memory interface
WATERFORCE all-in-one cooling system
Liquid metal thermal grease for GPU
Server-grade thermal conductive gel
360mm radiator with three120mm ARGB fans
RGB Lighting
Protective metal back plate
4 Years Warranty (Online registration required)

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

WATERFORCE
COOLING SYSTEM
The ideal way for PC enthusiasts to enjoy the benefits of water cooling without complicated installations. AORUS provides an all-around cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.

UNCOMPROMISING CRAFTSMANSHIP & PERFORMANCE
Perfectly capturing the essence of convergence, the design features a transparent element with smoky black as the key visual, complemented by the interplay of light and shadow. The inner transparent panel reveals a convergence of lines, creating a dynamic yet profound visual effect. This design not only adds a touch of mystery to the graphics card but also delivers an unparalleled visual experience.

GOLDEN EDGE WITH LAYERED VISUAL EFFECTS
Outlined with an elegant golden line, the front is divided into two distinctly contrasting textures, elevating the ''beauty of irregularity'' to its ultimate perfection.

RGB LIGHT-GUIDING DESIGN
Leveraging the light-guiding properties of acrylic, the front AORUS logo emits RGB lighting with refined detailing in the illuminated areas.

RGB EDGE LIGHTING
The RGB lighting extends along the edges of the irregular layered design, subtly enhancing the stereoscopic appearance while infusing a sense of suspension and futuristic technological aesthetics.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
