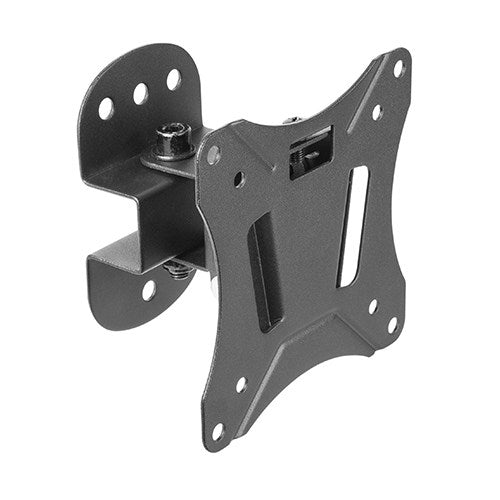

Brateck LCD Economy Pivot TV Wall Mount Bracket VESA 75 x75mm/100 x100mm 13'-27' LCD Panel Up to 25kg, KMA21-110

The new model KMA21-110 is an ideal solution for most 13'-27' flat panel TVs up to 25kgs/55lbs. The convenient swivel & tilt adjustments at the joint allows you to adjust the TV angle to get the optimum viewing angle: whether it's avoiding glare or positioning it towards the sofa for the perfect view, from anywhere in the room. VESA compatible with 75x75, 100x100.

Brand	Brateck
●Easy-Grip Knobs	for quick tilt and lock
●Swiveling Arm(S)	offer(s) maximum viewing flexibility (makes every seat the best seat)
●Easy Assembly	Installation is as easy as 1-2-3
Product Category	Pivot TV Wall Mount
Rank	Standard
Material	Steel
Metal Sheet Thickness	Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Wall Plate THK=0.079' cold-rolled sheet,VESA Panel THK=0.059' cold-rolled sheet)
Surface Finish	Powder Coating
Colour	Fine Texture Black
Dimensions	115x115x76mm (4.5'x4.5'x3')
Fit Screen Size	13'-27'
Fit Curved Tv	No
Mounting Hole Pattern	VESA Only
Vesa Compatible	75x75,100x100
Max. Vesa	100x100
Weight Capacity	25kg (55lbs)
Strength Tested	2 Times Approved
Profile	76mm (3')
Tilt Range	＋7.5°～-7.5°
Swivel Range	+25°~-25°
Screen Freely Tilting	No
Installation	Solid Wall,Single Stud
Panel Type	Detachable Panel
Wall Plate Type	Fixed Wall Plate
Cable Management	No
Anti-Theft	No
Bubble Level	No
Accessory Kit Package	Compartment Polybag
SKU	KMA21-110
OEM Code	KMA21-110
Barcode	6.95675E+12

Brand: Brateck

OEM SKU: KMA21-110
