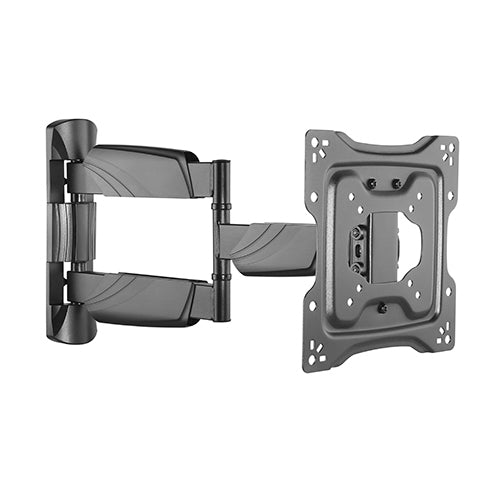

Brateck Elegant Full-Motion TV Wall Mount For 23'-42' up to 35KG, VESA Compatible: 75x75,100x100,200x100,200x200, Fine Texture Black (LS), LPA50-223

Brateck Elegant Full-Motion TV Wall Mount For 23'-42' up to 35KG

Brand	Brateck
●Free-Tilting Design	makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(S)	offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling Adjustments	allow TV to be perfectly positioned after hanging
●Cable Management	keeps everything organized
Product Category	Full-motion TV Wall Mount
Rank	Standard
Material	Steel,Plastic
Metal Sheet Thickness	VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (VESA Panel THK=0.071' cold-rolled sheet,Wall Plate THK=0.098' pickling sheet)
Pipe Size	40x20x1.5mm (1.6'x0.79'x0.059')
Surface Finish	Powder Coating
Colour	Fine Texture Black
Dimensions	224x292x510mm (8.8'x11.5'x20.1')
Fit Screen Size	23'-42'
Fit Curved Tv	No
Mounting Hole Pattern	VESA Only
Max. Mounting Hole	200x200
Weight Capacity	35kg (77lbs)
Strength Tested	4 Times Approved
Profile	45~510mm (1.8'~20.1')
Tilt Range	＋5°～-15°
Swivel Range	+90°~-90°
Screen Level	+3°~-3°
Screen Freely Tilting	No
Installation	Solid Wall,Single Stud
Panel Type	Detachable Panel
Wall Plate Type	Fixed Wall Plate
Cable Management	Yes
Anti-Theft	No
Bubble Level	No
Accessory Kit Package	Normal/Ziplock Polybag,Compartment Polybag
Certification	UL
SKU	LPA50-223
OEM Code	LPA50-223
Barcode	6.95675E+12

Brand: Brateck

OEM SKU: LPA50-223
