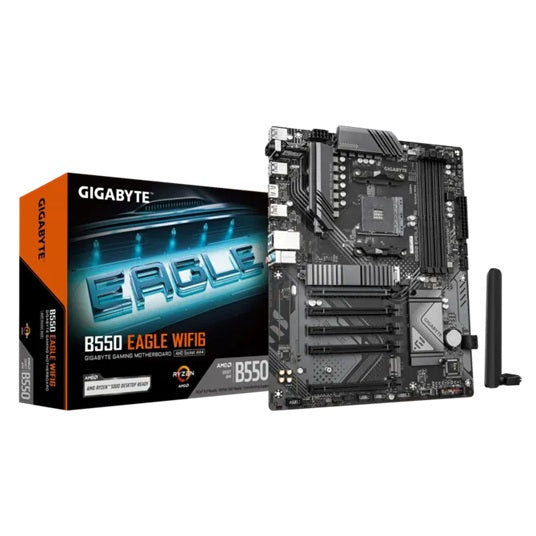

Gigabyte B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000-5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3 HDMI 2.1

B550 EAGLE WIFI6 AMD ATX motherboard with AM4 support, Ryzen 3000-5000 CPUs, DDR4 up to 128GB, PCIe 4.0, dual M.2, Wi-Fi 6, Bluetooth 5.3, HDMI 2.1

High-performance ATX motherboard powered by the AMD B550 chipset, designed for AMD Ryzen processors and modern connectivity.

Key Features:

AMD B550, ATX

•

Socket / CPU Support: AM4

•Ryzen 3000, 3000G, 4000G, 5000, 5000G
•

Chipset: AMD B550

•

Memory:
•

4x DDR4 DIMM, up to 128 GB
•

Dual-channel, 2133-3200 MT/s
•

XMP support, ECC & Non-ECC (unbuffered)

•Integrated Graphics:
•

AMD Radeon Graphics (CPU-dependent)
•

1x HDMI 2.1, up to 4K@60Hz

•Max shared memory: 16 GB

•Expansion Slots:

•1x PCIe x16

•PCIe 4.0 (Ryzen 3000/5000)

•PCIe 3.0 (G-Series)

•4x PCIe 3.0 x1

•

Storage:
•

2x M.2 (PCIe 4.0/3.0, CPU-dependent)
•

4x SATA 6Gb/s
•

RAID 0 / 1 / 10 (NVMe & SATA)

•Networking:

•Realtek Gigabit LAN

•Wi-Fi 6, Bluetooth 5.3

•Audio:
•

Realtek HD Audio, up to 7.1-channel

•
USB:

•USB-C (rear & header)

•USB 3.2 Gen 2 / Gen 1

•USB 2.0

•

Internal Headers:
•

24-pin ATX, 8-pin CPU power
•

CPU fan + pump header, 3x system fan

•RGB & ARGB headers

•
TPM header, Clear CMOS jumper

•Back Panel I/O:

•HDMI

•USB-C, USB 3.2, USB 2.0

•RJ-45 LAN
•

Audio jacks

•Q-Flash Plus button

•BIOS:

•AMI UEFI, 128 Mbit flash
•

Q-Flash & Q-Flash Plus

•OS Support: Windows 10 / 11 (64-bit)
•

Form Factor: ATX - 30.5 x 24.4 cm

Brand: Gigabyte

OEM SKU: B550 EAGLE WIFI6
