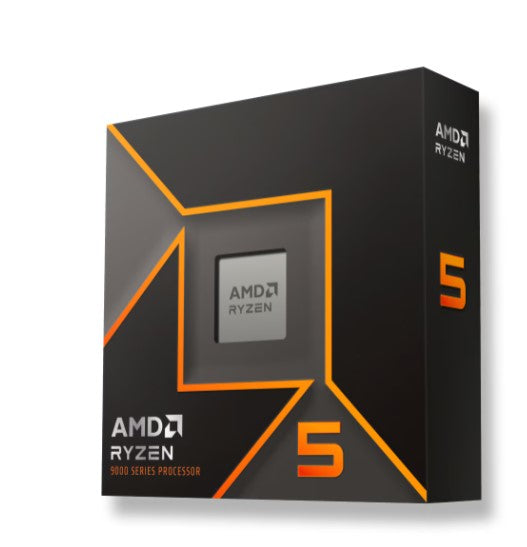

AMD Ryzen 5 9600X 6Cores/12Threads, 65 watts, Max Boost Clock 5.4 GHz, PCIE 5.0, 32MB Cache, Radeon Graphics, 2200 MHz Frequency, 100-100001405WOF

General Specifications Supporting Chipsets; A620 , X670E , X670 , B650E , B650 , X870E , X870 Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit Connectivity Additional Usable PCIe Lanes from Motherboard X870E 8x Gen4 X870 4x Gen4 X670E 12x Gen4 X670 12x Gen4 B650E 8x Gen4 B650 8x Gen4 Max Memory Speed 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 USB Type-C DisplayPort Alternate Mode: Yes

• OS Support:

Brand	AMD
Form Factor	Desktops , Boxed Processor
Market Segment	Enthusiast Desktop
Amd Pro Technologies	No
Former Codename	Granite Ridge AM5
Architecture	Zen 5
# Of Cpu Cores	6
Multithreading (Smt)	Yes
# Of Threads	12
Max. Boost Clock	Up to 5.4 GHz
Base Clock	3.9 GHz
L1 Cache	384 KB
L2 Cache	6 MB
L3 Cache	32 MB
Default Tdp	65W
Processor Technology For Cpu Cores	TSMC 4nm FinFET
Processor Technology For I/O Die	TSMC 6nm FinFET
Package Die Count	2
Cpu Socket	AM5
Cpu Boost Technology	Precision Boost 2
Instruction Set	x86-64
Thermal Solution (Pib)	Not Included
Recommended Cooler	Premium air cooler recommended for optimal performance
Native Usb 3.2 Gen 2 (10Gbps) Ports	4
Native Usb 2.0 (480Mbps) Ports	1
Pci Express Version	PCIe 5.0
Native Pcie Lanes (Total/Usable)	28 , 24
Nvme Support	Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	192 GB
System Memory Subtype	UDIMM
Graphics Model	AMD Radeon Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
Product Id Boxed	100-100001405WOF
SKU	100-100001405WOF
OEM Code	100-100001405WOF
Barcode	730143315609

Brand: AMD

OEM SKU: 100-100001405WOF
