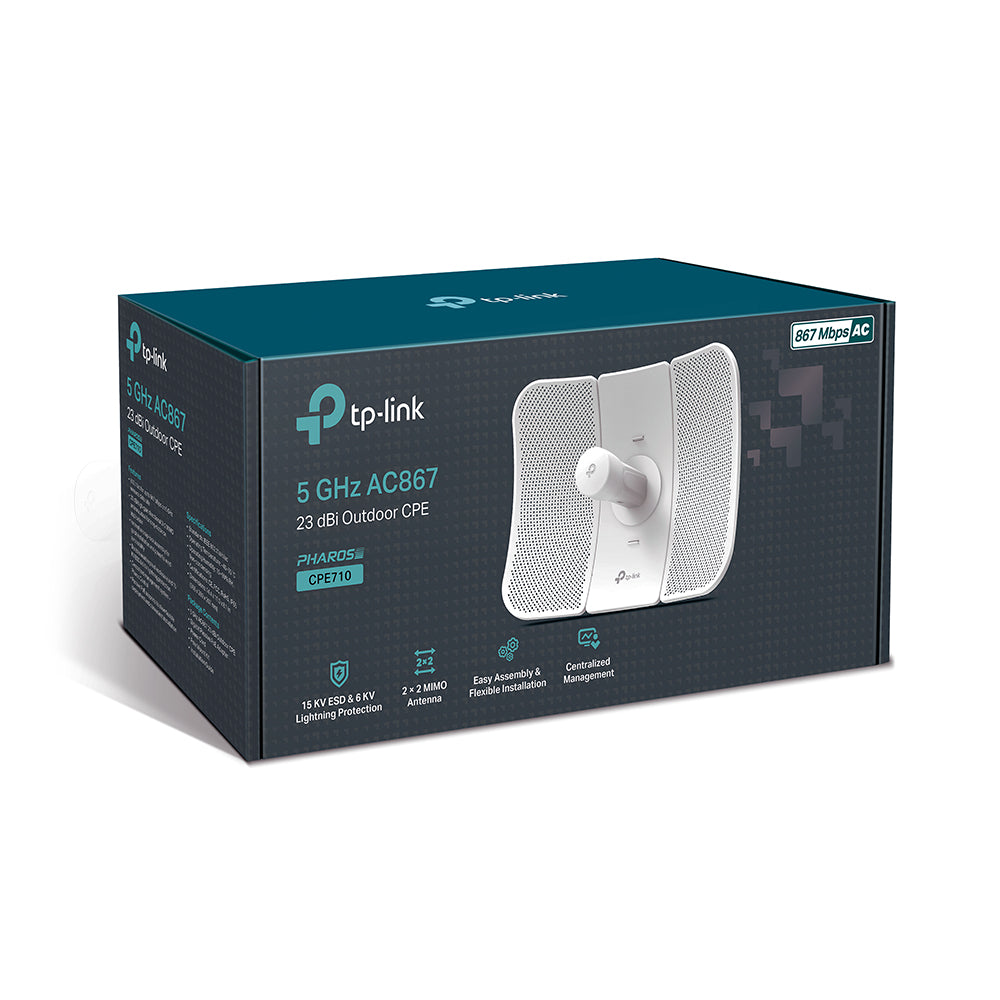

TP-Link CPE710 5GHz AC 867Mbps 23dBi High-gain Directional Outdoor CPE, IP65 Weather Proof, Lightning Protection, Passive POE, Centralised Management

TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE Processor Qualcomm 750MHz CPU, MIPS 74Kc Memory 128 MB DDR2 RAM, 16 MB Flash Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) Dimensions ( W x D x H ) 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) Antenna Gain 23 dBi Antenna Beamwidth 9° (Azimuth)/7° (Elevation) Protection 15 KV ESD Protection 6 KV Lightning Protection Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic) Up to 400 Mbps (40 MHz, Dynamic) Up to 173.4 Mbps (20 MHz, Dynamic) Frequency 5.15~5.85 GHz Transmit Power Max. 27 dBm (Adjustable power by 1dBm) Access Control Static Routing Bandwidth Control IP & MAC Binding Dimensions(W x D x H) 85.8x43.9x29.7 mm

• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2x2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation

Brand	TP-LINK
Product Type	Ink cartridge
Voltage Range	16-27V DC
Enclosure Material	Outdoor PC stabilized plastic
Weatherproof	IP65 water and dust proof design
Network Configuration Wan	Static/ Dynamic/ PPPoE
Lan	Static/ Dynamic/ DHCP
Forwarding	ALG/ UPnP/ Virtual Server/ Port Trigger
Security	SPI Firewall/ Ping Forbidden/ DoS Protection
SKU	CPE710
OEM Code	CPE710
Barcode	6.93536E+12

Brand: TP-LINK

OEM SKU: CPE710
