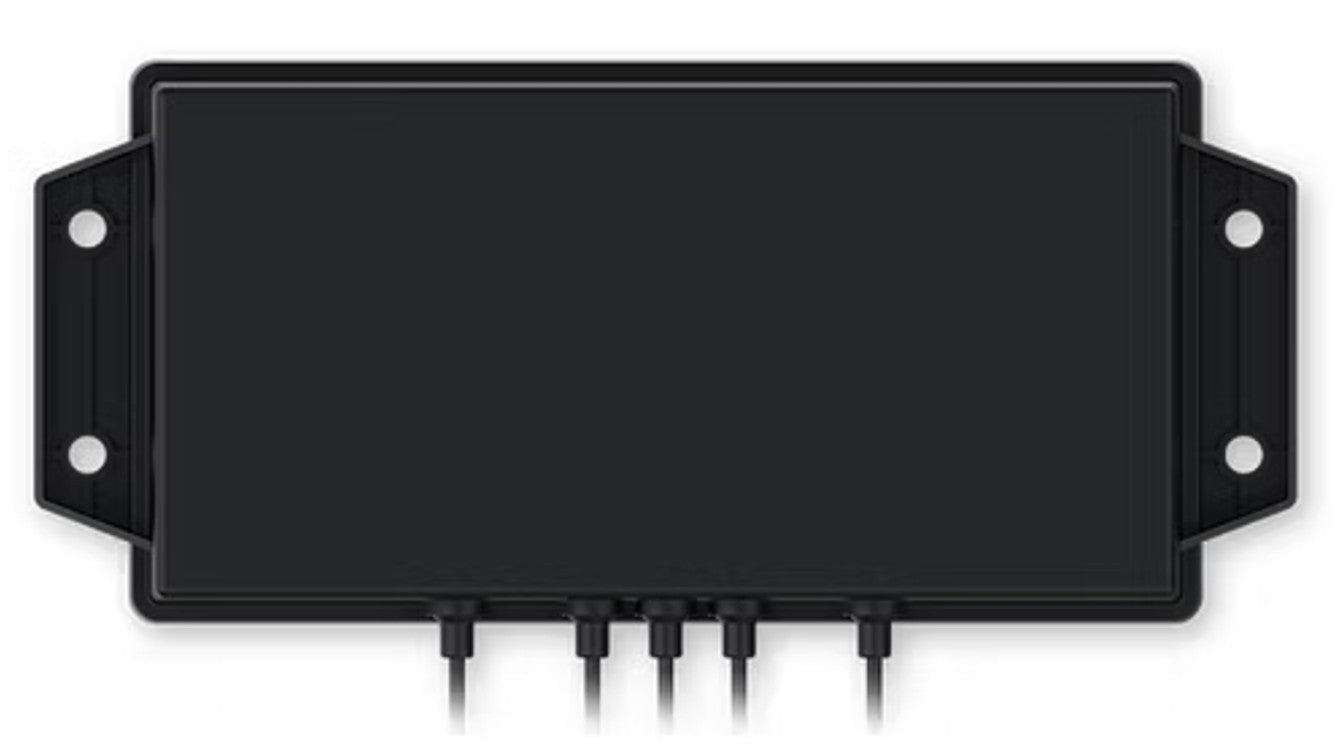

Teltonika 5G COMBO MOBILE/GNSS SMA ANTENNA, PR1KCN40

Technical Data
Mounting type
M6 Screw or Adhesive

Enclosure material
PC/PC+ABS

UV resistant
✓

Cable length
3000 mm

Weight
450 g

Operating temperature
-40 °C ~ +80 °C

Operating humidity
≤ 90 %

Ingress Protection Rating
IP67

RoHS compliant
✓

5G MOBILE MIMO ANTENNA
Frequency range
600 ~ 960, 1427 ~ 2700, 3300 ~ 4200, 4400 ~ 5000 MHz

Polarisation
Linear

Radiation pattern type
Omni-directional

Gain
≤ 4 dBi

V.S.W.R
≤ 2.5

Impedance
50 Ω

Connector type and count
4 x SMA Male

Cable type
4 x LMR100

GNSS ANTENNA
Frequency range
1559 ~ 1610, 1164 ~ 1189 MHz

Polarisation
RHCP

Radiation pattern type
Directional

Gain
≤ 2 dBi

LNA Gain
17 ± 2 dB

LNA noise figure
≤ 2 dB

V.S.W.R
≤ 2

Impedance
50 Ω

Supply voltage
3 ~ 5 VDC

Current consumption
15 mA

Connector type and count
1 x SMA Male

Cable type
1 x LMR100
