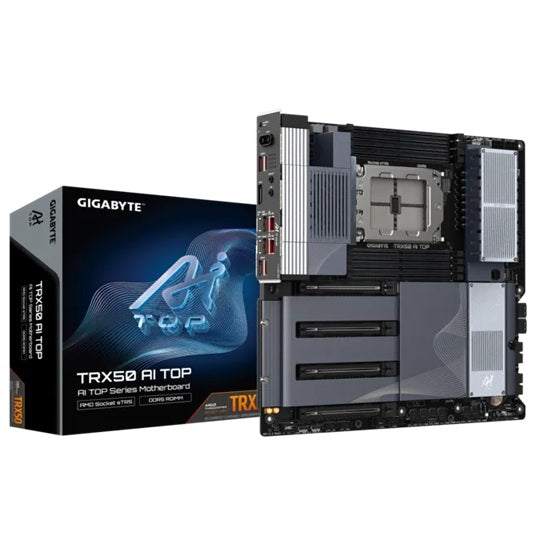

Gigabyte TTRX50 AI TOP AMD Ryzen Motherboard, sTR5 Threadripper, DDR5 ECC RDIMM up to 2TB, PCIe 5.0, USB4, Wi-Fi 7, Dual 10GbE, E-ATX

Gigabyte TTRX50 AI TOP AMD Ryzen Motherboard, sTR5 Threadripper, DDR5 ECC RDIMM up to 2TB, PCIe 5.0, USB4, Wi-Fi 7, Dual 10GbE, E-ATX

CPU
AMD Socket sTR5, support for:
AMD Ryzen Threadripper PRO 9000-WX Series Processors/ AMD Ryzen Threadripper 9000 Series Processors/ AMD Ryzen Threadripper PRO 7000-WX Series Processors/ AMD Ryzen Threadripper 7000 Series Processors

Chipset
AMD TRX50

Memory
Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)
8 x DDR5 DIMM sockets supporting up to 2 TB of system memory
- AMD Ryzen Threadripper PRO 9000-WX/PRO 7000-WX Series Processors support 8-Channel memory architecture
- AMD Ryzen Threadripper 9000/7000 Series Processors support Quad Channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Audio
Realtek ALC4080 CODEC (rear panel audio)
- Support for DTS:X Ultra
- High Definition Audio
- 2-channel
Realtek ALC897 CODEC (front panel audio)

LAN
2 x Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

Wireless Communication module
Qualcomm Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
CPU:
3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:
- AMD Ryzen Threadripper PRO 9000-WX/PRO 7000-WX Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen Threadripper 9000/7000 Series Processors support PCIe 5.0 x16 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)
1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:
- AMD Ryzen Threadripper PRO 9000-WX/PRO 7000-WX/9000 Series Processors support PCIe 5.0 x16 mode
- AMD Ryzen Threadripper 7000 Series Processors support PCIe 4.0 x16 mode

USB
CPU:
- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel JHL8540 USB4 controller:
- 2 x USB4 USB Type-C ports on the back panel

Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:
- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x PCIe power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Clear CMOS button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

I/O Controller
iTE I/O Controller Chip

Unique Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup

Operating System
Support for Windows 11 64-bit
Support for Ubuntu 24.04 LTS

Form Factor
E-ATX Form Factor; 30.5cm x 33.0cm
