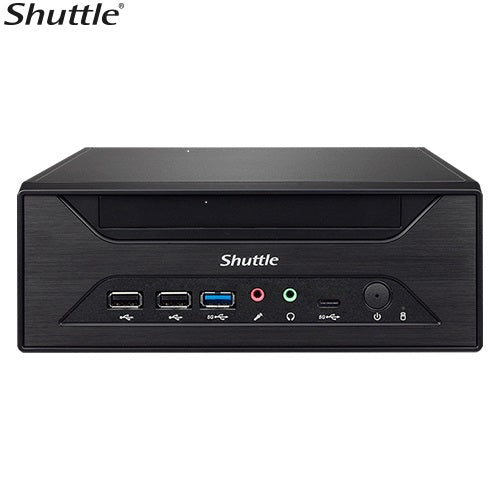

Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, PCIe x 1 slot, 2x M.2 2280

Shuttle XH610G2 Intel 14th/13th/12th Gen LGA1700 socket, DDR5, 5L, H610, 2x LAN, 2x HDMI, DP, PCIe x 16 slot, PCIe x 1 slot, 2x M.2 2280, (VGA & RS232 both optional), 180W

The XH610 and XH610V compact 3-liter slim pc feature robust performance and can be customized to drive
highly interactive kiosks, vending machines, digital signage, and surveillance applications. Equipped with
Intel H610 chipset, it supports Intel 13th/ 12th LGA1700 65W processors and delivers 4K UHD video content.
In terms of extra I/O capabilities, the series features HDMI 2.0b, DisplayPort, VGA, USB 3.2 Gen 1, USB 2.0,
RS232, M.2, and 2.5 Gigabit LAN. Furthermore, its slim metal chassis is VESA mount compliant, allowing
24/7 operation even in 50⁰C environments.

Form Factor
Mini-ITX MB
3.5 L chassis

Chipset
Intel H610 Express chipset

Memory
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB)
DDR4 3200 MHz

Video Output
HDMI + Display + D-Sub (VGA) port triple display

Audio
Realtek ALC662/ALC897/ALC888S 5.1 channel High Definition Audio

Expansion Slot
(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E Key socket

Ethernet
(1)Intel GbE Lan / (1)Intel 2.5 GbE Lan
10Mb/s,100Mb/s,1Gb/s operation
Support Wake-On-LAN function

Storage Interface
SATA 6.0Gb/s interface

Brand: Shuttle

OEM SKU: XH610G2
