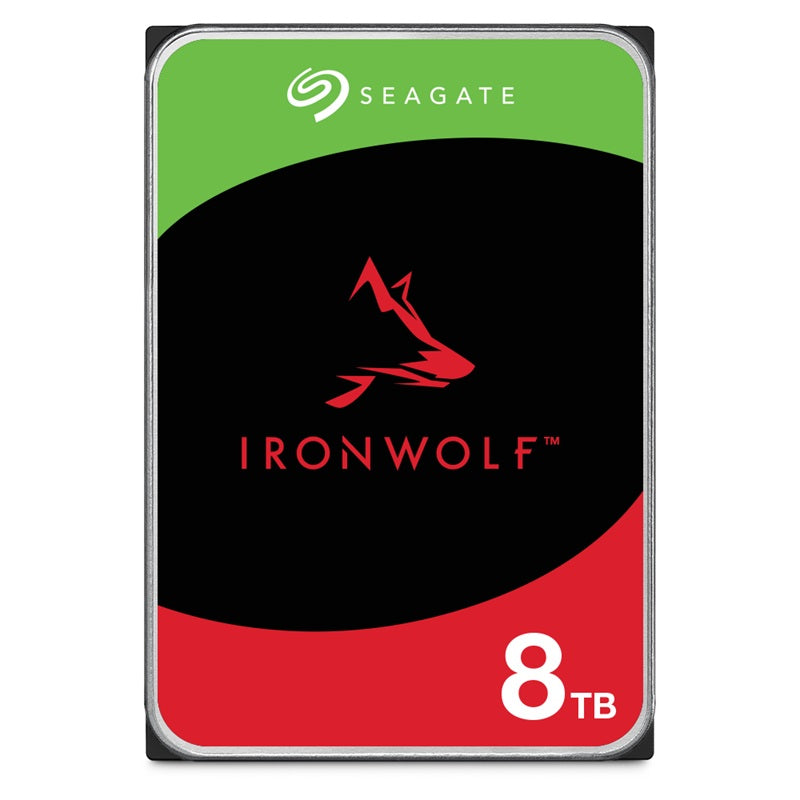

Seagate 8TB 3.5' IronWolf, SATA 6.0Gb/s, NAS 24x7, CMR, max. STR OD 202MB/s, 5400 RPM, 256MB Cache, HDD, 3Years Warranty (ST8000VN002)

Seagate 8TB 3.5' IronWolf, SATA 6.0Gb/s, CMR, max. STR OD 202MB/s, 5400 RPM, 256MB Cache, HDD (ST8000VN002)

IronWolf is designed for consumer and commercial NAS. Delivering Tough, Ready and Scalable 24x7 performance in multibay, networked environments.

SPECIFICATION
Capacity 8TB
Standard Model Number ST8000VN002
Interface SATA 6Gb/s

Features and Performance
Drive Bays Supported 1 - 8 Bays
Recording Technology CMR
Drive Design (Air or Helium) Air
Workload Rate Limit (WRL) 180
Rotational Vibration (RV) Sensor Yes
Dual-Plane Balance Yes
Error Recovery Control Yes
Max. Sustained Transfer Rate OD (MB/s) 202MB/s
Spindle Speed (RPM) 5,400
Cache (MB) 256

Reliability

Load/Unload Cycles 600,000
Non-recoverable Read Errors Rate, Max 1 per 10E14
Power-on Hours 8,760
Mean Time Between Failures (MTBF, hours) 1,000,000
Rescue Data Recovery Services (years)4 3
Warranty, Limited (years) 3

Power Management
Startup Current, Typical (12V, A) 1.8
Average Operating Power 5.3
Idle Power Average (W) 4 W
Standby Mode/Sleep Mode, Typical (W) 0.25/0.25
Voltage Tolerance, Inc. Noise (5V / 12V) ±5% / ±10%

Environmental/Temperature
Operating Temperature (ambient, min °C) 0
Operating Temperature (drive reported, max °C)5 65
Nonoperating Temperature (ambient, min / max °C) -40 / 70

Environmental/Shock
Shock, Operating/Non-operating: 2 ms (max) 80 Gs/300 Gs

Environmental/Acoustics
Acoustics, Idle (typical, measured in Idle 1 state) (dBA) 25
Acoustics, Seek (typical) (dBA) 26

Physical

Height (mm/in) 26. 11 mm/1.028 in
Width (mm/in, max) 26.11 mm/1.028 in
Depth (mm/in, max) 146.99 mm/5.787 in
Weight (g/lb, typical) 630 g/1.389 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8

Brand: Seagate

OEM SKU: ST8000VN002
