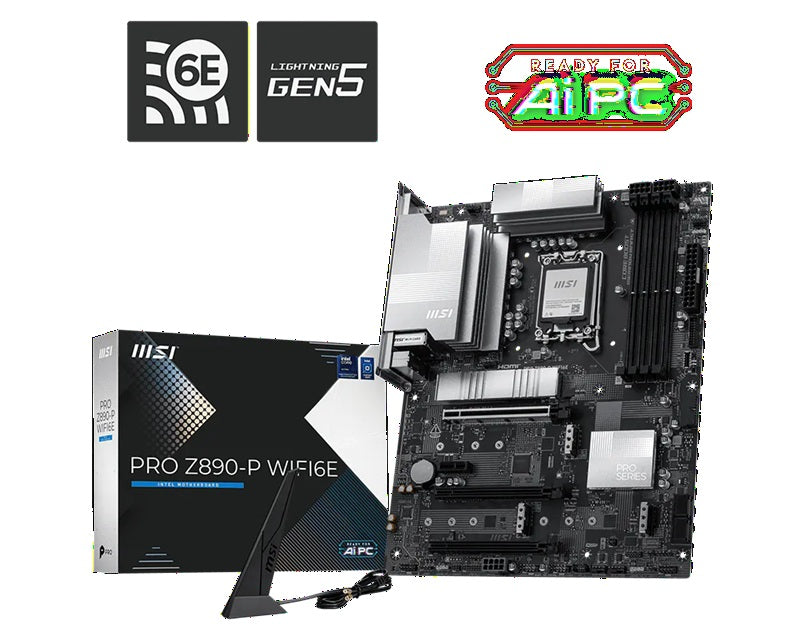

MSI PRO Z890-P WIFI6E, LGA1851, Z890, DDR5 9200+, PCIe5.0, 4xM.2, 5G LAN, WiFi 6E, BT5.3, USB 20Gbps, HDMI2.1/DP1.4

MSI PRO Z890-P WIFI6E, LGA1851, Z890, DDR5 9200+, PCIe5.0, 4xM.2, 5G LAN, WiFi 6E, BT5.3, USB 20Gbps, HDMI2.1/DP1.4

PRO Z890-P WIFI6E offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 6E with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel Core Ultra processors.

SPECIFICATION
Model Name PRO Z890-P WIFI6E
CPU Support Support Intel Core Ultra Processors (Series 2)
CPU Socket LGA 1851
Chipset Intel Z890 Chipset

Expansion Slots
1x PCIe 5.0 x16 slot
2x PCIe 4.0 x4 slots
1x PCIe 4.0 x1 slot

Display Interface
Support 4K@60Hz as specified in HDMI 2.1,
DisplayPort 1.4 - Requires Processor Graphics

Memory Support 4 DIMMs, Dual Channel DDR5 - 9200+ MT/s (OC)

Storage
1x M.2 Gen5 x4 128Gbps slot,
3x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports

USB ports
1x USB 20Gbps (1 Type-C),
2x USB 10Gbps (1 Type-A + 1 Type-C),
6x USB 5Gbps (6 Type-A)
8x USB 2.0

LAN Realtek 8126 5G LAN
WiFi / BT Wi-Fi 6E solution, Bluetooth 5.3
Audio 8-Channel (7.1) HD Audio with Audio Boost

Brand: MSI

OEM SKU: PRO Z890-P WIFI6E
