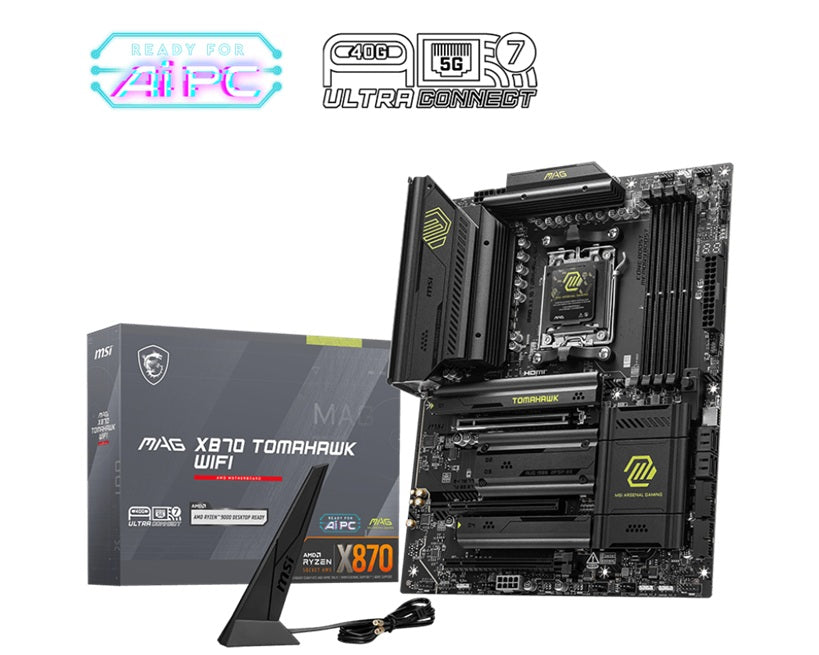

MSI MAG X870 TOMAHAWK WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 5x USB 3.2, 4x USB2.0, 3x USB-C

MSI MAG X870 TOMAHAWK WIFI, AMD AM5 ATX Motherboard 4x DDR5~256GB, 3x PCIe x16, 4x M.2, 5x USB 3.2, 4x USB2.0, 3x USB-C

Chipset
AMD X870

CPU
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Onboard Graphics
1x HDMI
Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

Slot
3x PCI-E x16 slot

Audio
Realtek ALC4080 Codec
7.1-Channel USB High Performance Audio

Storage
4x M.2

Multi-GPU
AMD MULTI-GPU Support

RAID
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

LAN
Realtek 8126-CG 5G LAN

WIRELESS LAN & BLUETOOTH
Wi-Fi 7
Supports Bluetooth 5.4**, MLO, 4KQAM

LED FEATURE
4x EZ Debug LED
1x EZ Digit Debug LED

OPERATING SYSTEM
Support for Windows 11 64-bit

PCB Info
ATX
304.8mmx243.84mm

Brand: MSI

OEM SKU: MAG X870 TOMAHAWK WIFI
