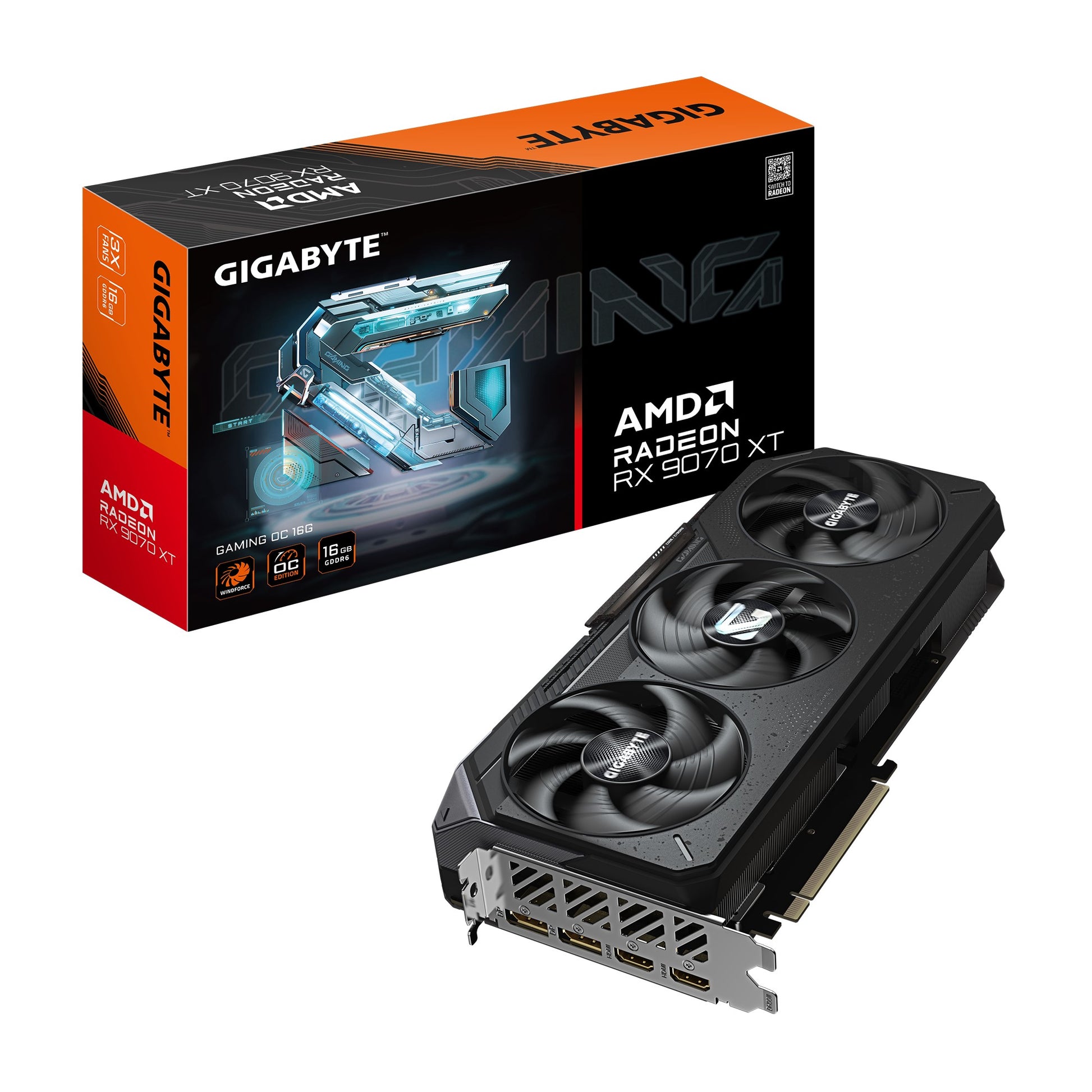

Gigabyte Radeon RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2, GV-R9070XTGAMING OC-16GD

Gigabyte Radeon RX 9070 XT GAMING OC 16G, 20 Gbps, GDDR6, 256 bit, PCI-E 5.0, PSU 850W, 8 pin*3, DisplayPort 2.1a *2 HDMI 2.1b *2

PCB Form ATX

Accessories Quick guide

Graphics	Processing
Core Clock	Boost Clock* : up to 3060 MHz (Reference card: 2970 MHz); Game Clock* : up to 2520 MHz (Reference card: 2400 MHz)
Stream Processors	4096
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=288 W=132 H=56 mm
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	850W
Power Connectors	8 pin*3
Display	Port 2.1a *2
HDMI	2.1b *2
Note	* "Boost Clock' is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads. GD-151; * "Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
FEATURES	Powered by Radeon RX 9070 XT; Integrated with 16GB GDDR6 256bit memory interface
WINDFORCE COOLING SYSTEM	The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN	The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
MULTI-LAYERED VISUAL	Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
UNIQUE TEXTURE	Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
RGB LIGHTING	With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE	Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
REINFORCED STRUCTURE	The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Brand: Gigabyte

OEM SKU: GV-R9070XTGAMING OC-16GD
