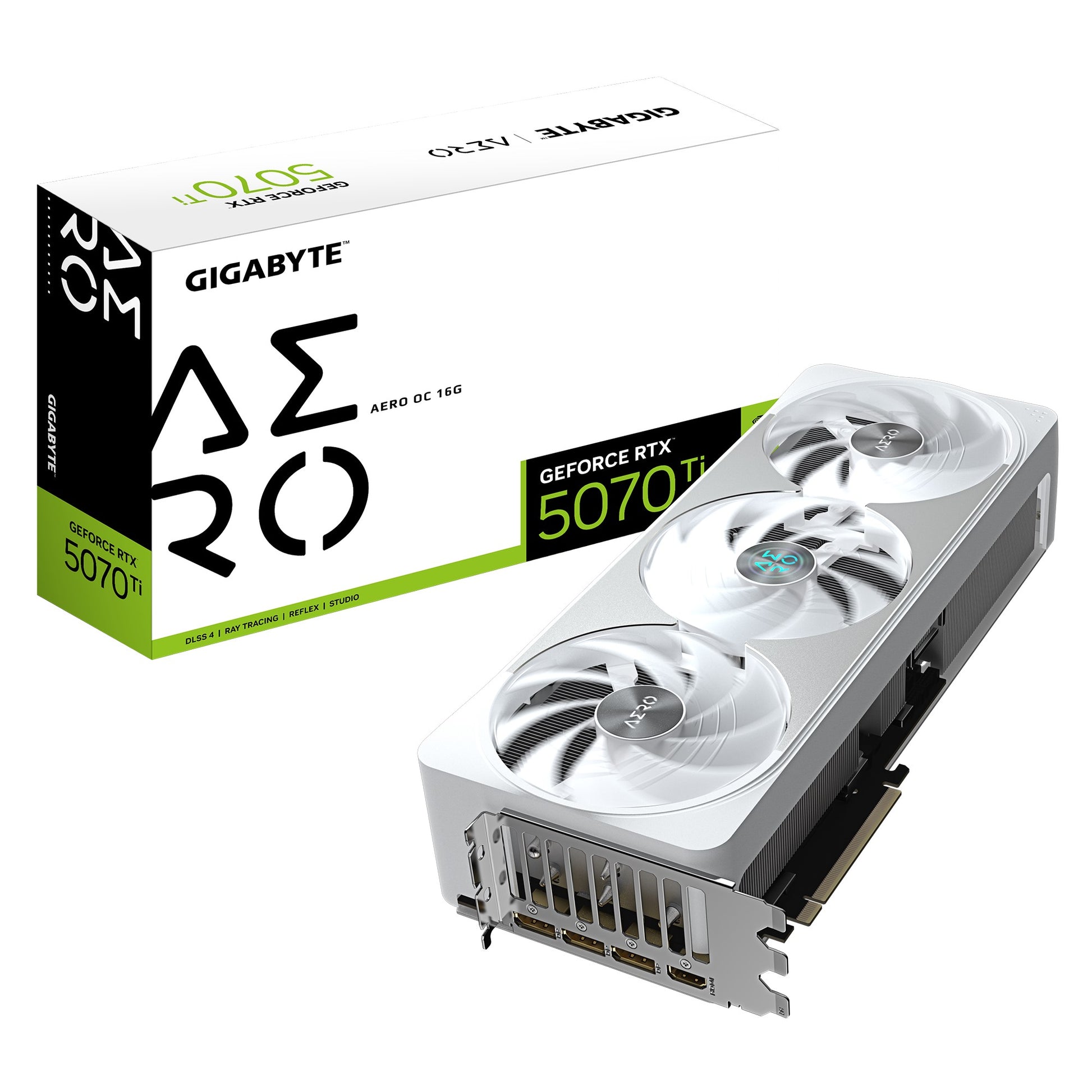

Gigabyte GeForce RTX 5070 Ti AERO OC 16G, 2588 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b x3 HDMI 2.1b x1, GV-N507TAERO OC-16GD

Gigabyte GeForce RTX 5070 Ti AERO OC 16G, 2588 MHz, CUDA 8960, 28 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b x3 HDMI 2.1b x1

PCB Form ATX

NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators

New Streaming Multiprocessors Optimized for neural shaders

Fourth-Gen Ray Tracing Cores Built for Mega Geometry

EXCELLENCE IN ESSENTIAL

Graphics	Processing
Core Clock	2588 MHz (Reference: 2452 MHz)
CUDA Cores	8960
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680 x 4320
Multi-view	4
Card size	L=340 W=140 H=70 mm
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	750W
Power Connectors	16 pin*1
Display	Port 2.1b x3
HDMI	2.1b x1
Accessories	1. VGA manual; 2. Warranty notice; 3. 1x 12V-2x6 to 3x PCIe 8pin adapter; 4. Versatile VGA holder; 5. Versatile VGA holder manual
FEATURES	Powered by the NVIDIA Blackwell architecture and DLSS 4; Powered by GeForce RTX 5070 Ti; Integrated with 16GB GDDR7 256bit memory interface
Versatile VGA holder	4 years warranty (Online registration required)
Fifth-Gen Tensor Cores	Max AI performance with FP4 and DLSS 4
WINDFORCE COOLING SYSTEM	The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN	Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.
RGB LIGHTING	With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
REINFORCED STRUCTURE	The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Brand: Gigabyte

OEM SKU: GV-N507TAERO OC-16GD
