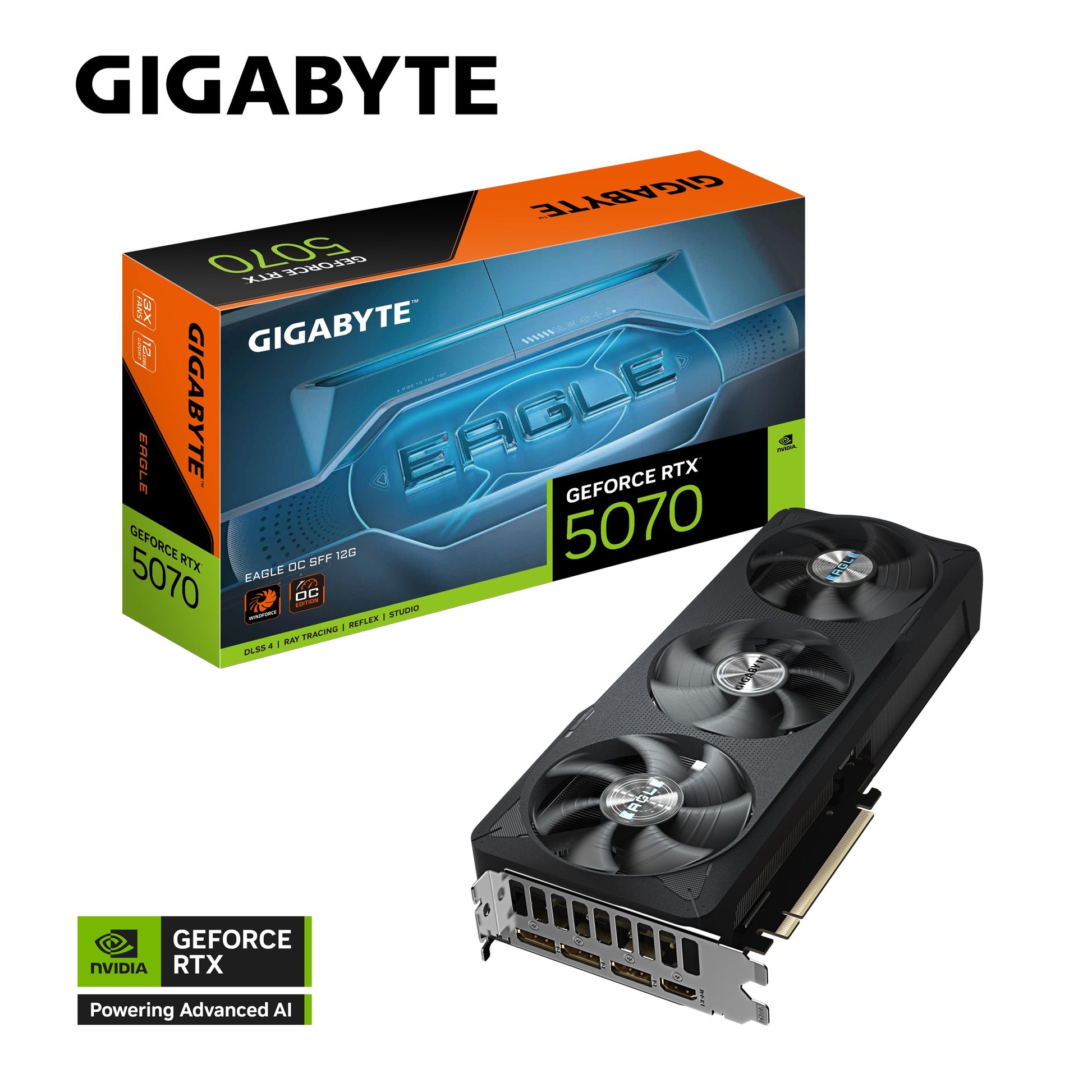

Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G, 2587 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1, GV-N5070EAGLE OC-12GD

Gigabyte GeForce RTX 5070 EAGLE OC SFF 12G, 2587 MHz, CUDA 6144, 28 Gbps, GDDR7, 192 bit, PCI-E 5.0, PSU 750W, DisplayPort 2.1b *3 HDMI 2.1b *1

PCB Form ATX

NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators

New Streaming Multiprocessors Optimized for neural shaders

Fourth-Gen Ray Tracing Cores Built for Mega Geometry

EXCELLENCE IN ESSENTIAL

NVIDIA SFF-READY Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

Graphics	Processing
Core Clock	2587 MHz (Reference card : 2512 MHz)
CUDA Cores	6144
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=290 W=120 H=50 mm
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	750W
Power Connectors	16 Pin*1
Display	Port 2.1b *3
HDMI	2.1b *1
Accessories	1. Quick guide; 2. 1x 12V-2x6 to 2x PCIe 8pin adapter
FEATURES	Powered by the NVIDIA Blackwell architecture and DLSS 4; Powered by GeForce RTX 5070; Integrated with 12GB GDDR7 192bit memory interface
Server-grade Thermal conductive gel	NVIDIA SFF-ready
Fifth-Gen Tensor Cores	Max AI performance with FP4 and DLSS 4
WINDFORCE COOLING SYSTEM	The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN	The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
SIGNATURE IDENTITY	The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EAGLE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.
DYNAMIC PULSATING VISUAL	The side panels adopt a layered metal plate design to enhance the depth and dynamics of the pulsating elements. Combined with subtle blue lighting effects, it crafts an immersive sci-fi visual aesthetic.
RGB LIGHTING	With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
REINFORCED STRUCTURE	The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

Brand: Gigabyte

OEM SKU: GV-N5070EAGLE OC-12GD
