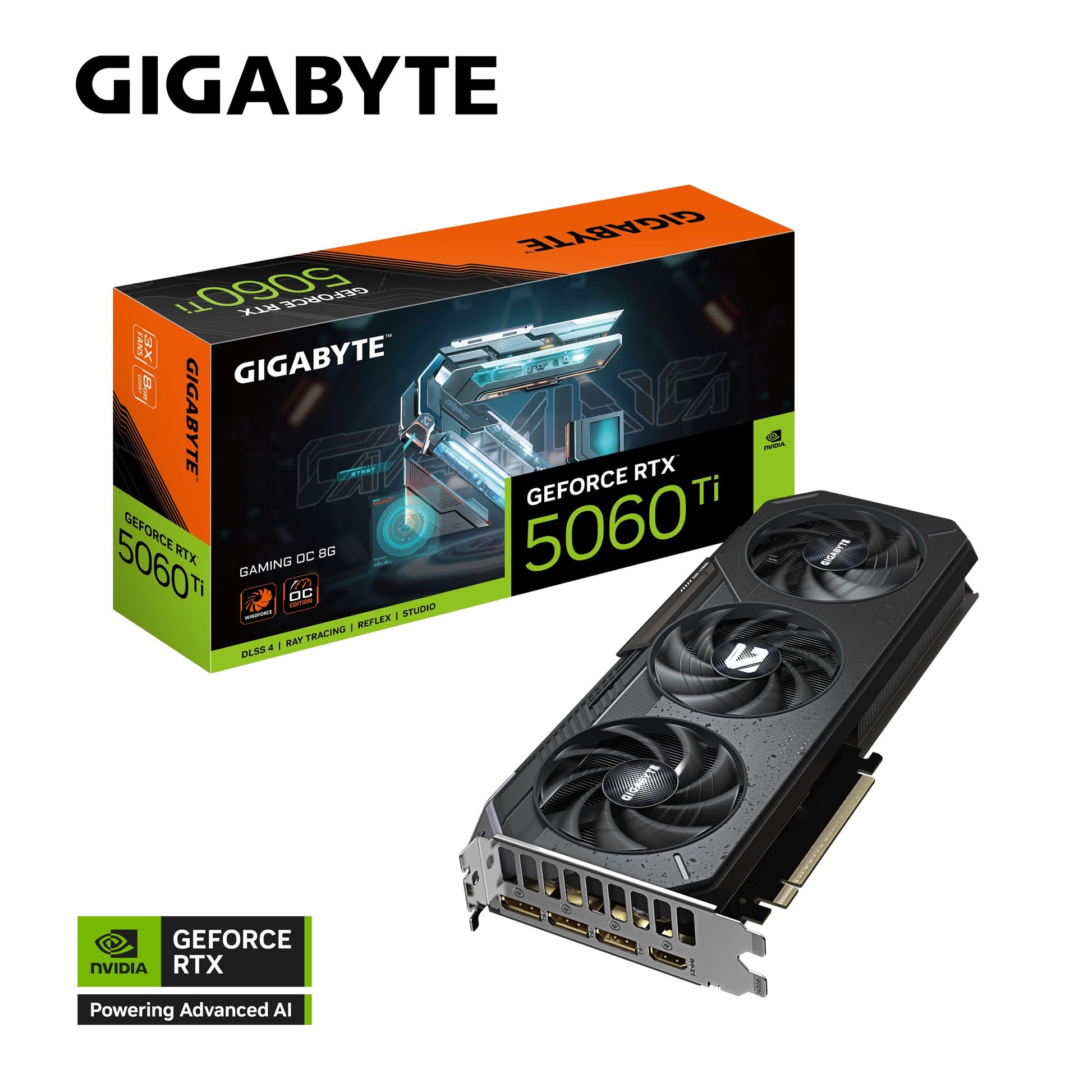

Gigabyte GeForce RTX 5060 Ti GAMING OC 8G, 2647 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1, GV-N506TGAMING OC-8GD 1.0

Gigabyte GeForce RTX 5060 Ti GAMING OC 8G, 2647 MHz, CUDA TBD, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 650W, DisplayPort 2.1b *3 HDMI 2.1b *1

CUDA Cores TBD

PCB Form ATX

Accessories Quick guide

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5060 Ti Integrated with 8GB GDDR7 128bit memory interface WINDFORCE cooling system Hawk fan Server-grade Thermal conductive gel RGB lighting Dual BIOS (Performance / Silent) Reinforced structure

The Ultimate Platform for Gamers and Creators

New Streaming Multiprocessors Optimized for neural shaders

Fourth-Gen Ray Tracing Cores Built for Mega Geometry

EXCELLENCE IN ESSENTIAL

Graphics	Processing
Core Clock	2647 MHz (Reference card :2572 MHz)
Memory	Bus
Card Bus	PCI-E 5.0
Digital max resolution	7680x4320
Multi-view	4
Card size	L=281 W=119 H=40 mm
DirectX	DirectX 12 API
OpenGL	4.6
Recommended PSU	650W
Power Connectors	8 Pin*1
Display	Port 2.1b *3
HDMI	2.1b *1
Fifth-Gen Tensor Cores	Max AI performance with FP4 and DLSS 4
WINDFORCE COOLING SYSTEM	The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN	The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
MULTI-LAYERED VISUAL	Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
UNIQUE TEXTURE	Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.
RGB LIGHTING	With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE	Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
REINFORCED STRUCTURE	The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

Brand: Gigabyte

OEM SKU: GV-N506TGAMING OC-8GD 1.0
