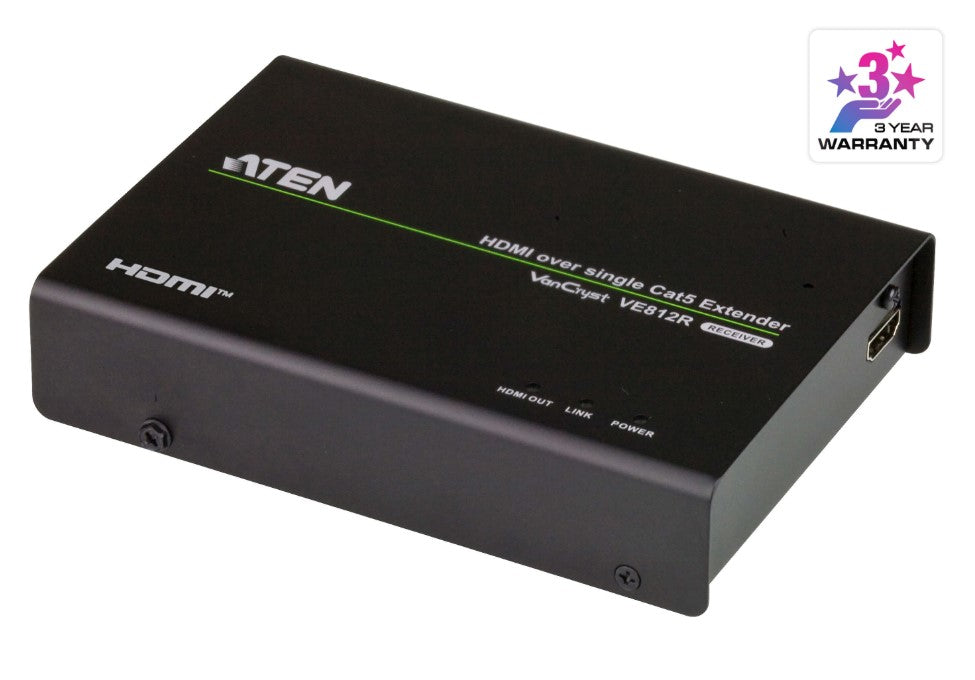

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A), VE812R-AT-U

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A)(LS)

Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver HDMI (3D, Deep Color, 4k); HDCP Compatible Anti-jamming, resists signal interference during high-quality video transmission using HDBaseT technology Long distance transmission, up to 100m Selects the optimum EDID settings for smooth power-up and highest quality display Supports up to 340MHz bandwidth for high performance video Supports Dolby True HD and DTS HD Master Audio Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Video Output	Interfaces 1 x HDMI Type A Female (Black)
Impedance	100 Ώ
Video	Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane); Max. Pixel Clock Up to 340 MHz; Compliance HDMI (3D, Deep Color, 4K); HDCP2.2 Compatible
Consumer Electronics Control (CEC)	Max. Resolutions and Distance Up to 4K@70m (Cat 5e/6) and 100m (Cat 6a);; 1080p@100m; *4K supported:; 4096 x 2160 and 3840 x 2160 @ 60Hz (4:2:0);; 4096 x 2160 and 3840 x 2160 @ 30Hz (4:4:4)
Output	1 x HDMI Type A Female (Black)
Power	1 x DC Jack
Power Consumption	DC5.3V:5.06W:24BTU
Operating Temperature	0 - 50°C
Storage Temperature	20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Weight	0.41 kg ( 0.9 lb )
Dimensions	(L x W x H) 14.17 x 10.30 x 3.00 cm
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Brand: Aten

OEM SKU: VE812R-AT-U
